Hydraulic pressure gauges are essential instruments in fluid mechanics, specifically designed to measure the pressure of fluids within hydraulic systems. These systems utilize liquids to transmit power, forming the foundation of many machinery operations. Ensuring accurate pressure measurement is pivotal for optimal system performance, longevity, and safety. The gauges exhibit intricate designs, ranging from classic analog displays with a needle over a numbered dial to modern digital displays with precise numeric readings. Inside, mechanisms like the Bourdon tube play a pivotal role; as pressure intensifies, this curved tube straightens, translating this motion into a readable display.
With advancements in technology, the landscape of pressure gauges is evolving, ushering in the era of smart gauges integrated with the Internet of Things (IoT) for remote monitoring and superior data collection capabilities. Nevertheless, irrespective of their design or sophistication, the core purpose remains consistent: ensuring hydraulic systems function efficiently and safely within prescribed pressure parameters. Regular maintenance, calibration, and troubleshooting are imperative to these gauges, ensuring they consistently deliver accurate readings, safeguarding both the machinery and its operators. As the nexus between the analog and digital worlds, hydraulic pressure gauges are an emblem of engineering precision and innovation.
Importance of Monitoring Pressure
Monitoring pressure ensures:
- System efficiency: Optimal performance is achieved when working within specified pressure ranges.
- Prevention of system failures: Overpressure can lead to equipment damage.
- Prolonged lifespan: Regular monitoring can catch issues before they lead to premature wear and tear.
- Safety: Overpressure or sudden pressure drops can be hazardous.
Design and Components of Hydraulic Pressure Gauges

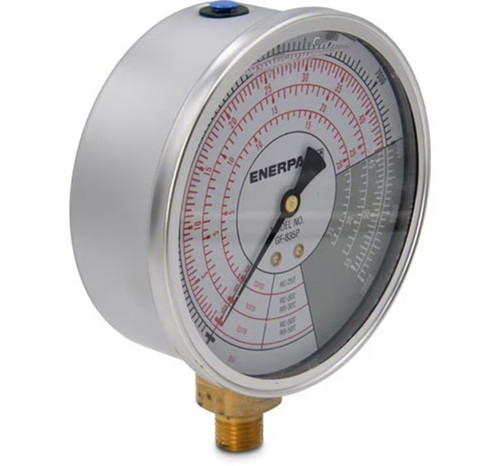

- Display: Analog displays have a needle over a numbered dial, while digital displays show exact numeric values.
- Bourdon tube mechanism: A curved tube that straightens as pressure increases, driving the needle in analog gauges.
- Pressure sensing element: Converts pressure into a mechanical or electronic signal.

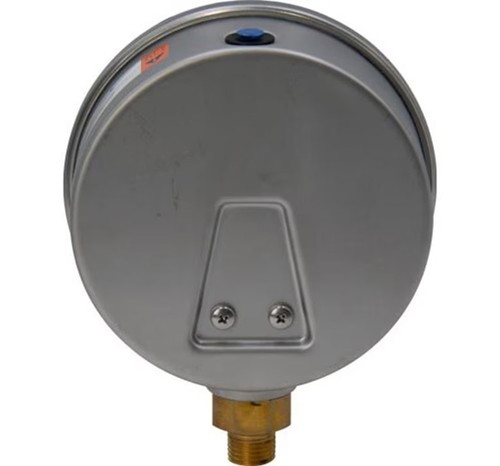

- Connection ports: Where the gauge connects to the hydraulic system.
- Materials often used include stainless steel (durable and rust-resistant), brass (corrosion-resistant), and phosphor bronze (flexible and corrosion-resistant).
Types of Hydraulic Pressure Gauges
- Direct-acting (mechanical) gauges: Use mechanical components, like the Bourdon tube, to measure pressure.
- Indirect-acting (electrical, digital) gauges: Use sensors and electronics to measure and display pressure.
- Differential pressure gauges: Measure the difference between two pressures.

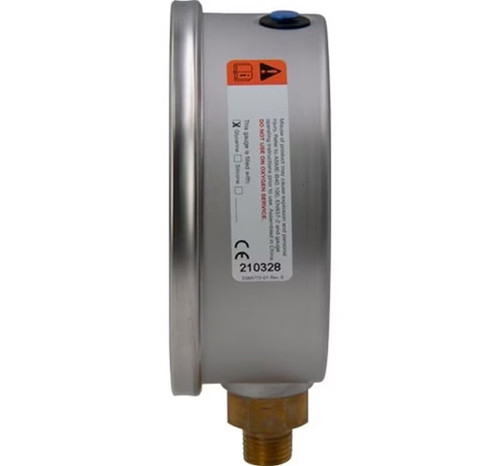

- Sealed and glycerin-filled gauges: Protect against vibrations and provide clearer readings.
Installing and Reading a Gauge
- Installation: Gauges should be mounted where they can be easily read, away from extreme temperature changes and vibrations. Snubbers and dampeners can reduce the effects of sudden pressure changes.
- Reading the display: Analog gauges are read by noting where the needle points on the dial. Digital displays show a direct numeric value.
- Units: Common units include PSI (pounds per square inch) and bar.
Maintenance and Troubleshooting
Issues can arise:
- Inaccuracy: Over time, gauges may not display correct pressure.
- Leakage: Seals can wear out.
- Blockages: Debris can prevent accurate readings.
- Regular calibration ensures gauge accuracy. Proper maintenance, like cleaning and periodic checks, prolongs a gauge's operational life.
Advancements and Future Trends
Modern innovations include:
- Smart gauges: Provide advanced metrics and diagnostics.
- IoT integration: Allows for remote monitoring and data collection.
- Material advancements: Leading to more durable and long-lasting gauges.
