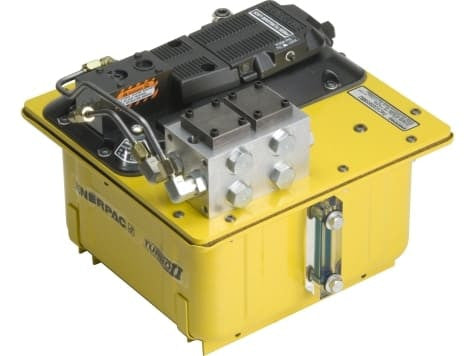

PACG50S8SMB4 is an Enerpac Turbo II air-hydraulic pump built around remote/manifold valve architecture, 462 in³ of reservoir capacity and the 5000 Series higher-pressure-flow hydraulic profile.
Remote-Valve Power for a Custom Fixture
PACG50S8SMB4 uses a four-station D03 manifold on the 462 in³ Turbo II reservoir. It is aimed at workholding systems that need several directional-valve functions from one air-hydraulic power source.
The pump uses the Turbo II 5000 Series flow profile. Enerpac lists 20 in³/min @ 5,000 psi at rated pressure, so this is the pressure-oriented choice relative to the matching 3000 Series configuration with the same control style.
PACG5005SB is the nearest smaller-reservoir alternative (230 in³). PACG30S8SMB4 keeps the same reservoir/control concept but changes to the 3000 Series flow profile.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Four D03 Valve Manifold |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
