Enerpac XC2 Series cordless hydraulic pumps provide portable battery-powered hydraulic power for industrial cylinders and tools without requiring an electrical outlet, compressed-air source or gasoline engine. The XC2 platform combines a rechargeable 54V lithium-ion battery with a two-stage hydraulic pump design for applications where portability and hydraulic performance are both important.
XC2 pumps are available with different reservoir capacities and control configurations. Select the appropriate model according to the hydraulic tool or cylinder being operated, required oil volume, control method and operating environment.
Choosing an Enerpac XC2 Cordless Hydraulic Pump
The correct XC2 pump should be selected according to the requirements of the complete hydraulic system rather than model number alone. Important specifications to compare include:
- Hydraulic pressure: Confirm that the pump, cylinder, tool, hoses, couplers and other hydraulic components are rated for the required operating pressure.
- Hydraulic flow: Oil flow affects how quickly the connected cylinder or hydraulic tool operates.
- Usable oil capacity: The pump reservoir must contain sufficient hydraulic oil to complete the required cylinder stroke or tool cycle.
- Control configuration: Select the pump configuration according to how hydraulic advance, hold and retract functions must be controlled.
- Battery and charger configuration: Battery and charger inclusion varies according to the specific XC2 pump configuration, so confirm what is supplied with the individual model before ordering.
54V Lithium-Ion Battery Power
Enerpac XC2 cordless hydraulic pumps use the EBH544 54V lithium-ion battery. The battery is rated at 4.0 Ah and 216 Wh and provides the pump with an independent power source for applications where conventional electrical power is unavailable or inconvenient.
Because the battery is removable and rechargeable, XC2 pumps can be used in field service, maintenance and other mobile hydraulic applications without routing an electrical cord to the work area.

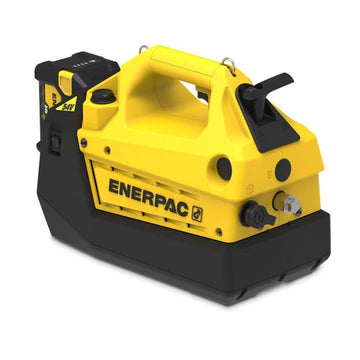

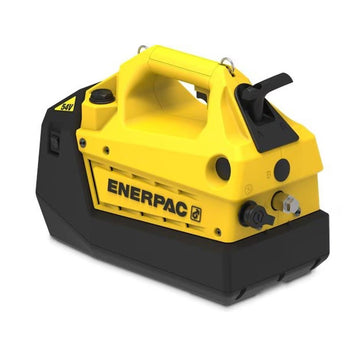

XC2202M and XC2204M Manual Valve Pumps
The Enerpac XC2202M and XC2204M use a lever-operated manual 3-way, 2-position hydraulic valve and are designed for single-acting hydraulic cylinders and tools.
Both models provide a maximum hydraulic operating pressure of 10,150 psi. Enerpac specifies hydraulic flow of approximately 160 in³/min at no load, 50 in³/min at 2,000 psi and 20 in³/min at 10,150 psi.
2-Liter and 4-Liter XC2 Reservoir Options
The XC2202M uses a 2-liter reservoir with approximately 120 in³ of usable hydraulic oil capacity. The XC2204M uses a 4-liter reservoir with approximately 240 in³ of usable oil capacity.
Reservoir size should be matched to the oil volume required by the connected cylinder or hydraulic tool. A larger reservoir is appropriate when the application requires greater hydraulic displacement, but additional oil capacity is unnecessary when a smaller reservoir can fully operate the connected equipment.
XC2 Two-Stage Hydraulic Performance
The XC2 hydraulic pump element provides higher oil flow at lower system pressure and transitions to lower flow as hydraulic pressure increases. This two-stage operation allows faster cylinder movement during initial advancement while still providing high-pressure hydraulic output when load resistance increases.
For XC2202M and XC2204M pumps, Enerpac specifies 160 in³/min at no load, 50 in³/min at 2,000 psi and 20 in³/min at the maximum 10,150 psi operating pressure.
XC2 Pump Weight and Portability
Enerpac specifies an approximate operating weight of 26.3 lb for the XC2202M and 29.8 lb for the XC2204M with hydraulic oil and battery installed. The 54V battery itself weighs approximately 3.5 lb.
When portability is important, consider both pump weight and reservoir capacity. The smaller 2-liter configuration reduces overall pump weight, while the 4-liter configuration provides greater usable hydraulic oil capacity for applications requiring additional displacement.
XC2 Battery and Charger Options
Enerpac offers XC2 pump configurations with different battery and charger arrangements. The EBH544 battery is a 54V, 4.0 Ah lithium-ion battery, and Enerpac provides charger configurations for different regional electrical supplies.
Some XC2 configurations include batteries and a charger while others require these components to be purchased separately. Verify the contents of the individual pump configuration before ordering.
XC2 Accessories

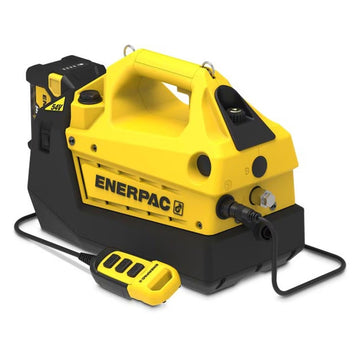

Enerpac identifies several optional accessories for the XC2 Series, including corded remote pendants, a pendant extension cord and the SSTRP55 shoulder strap. Accessory compatibility should be confirmed for the specific pump and control configuration being used.
XC2 vs. Other Battery Powered Hydraulic Pumps
The XC2 Series provides larger reservoir capacities and higher hydraulic flow than more compact battery-powered pump platforms such as the Enerpac SC Series. The appropriate platform depends on the hydraulic oil volume, operating speed and portability required by the application.
For the complete cordless pump selection, browse Enerpac battery powered hydraulic pumps.
Shop Enerpac XC2 Series Cordless Hydraulic Pumps
Compare the Enerpac XC2 pumps below by model number, reservoir capacity, control configuration, hydraulic flow and supplied battery and charger package. Select the pump configuration that matches the operating requirements of your hydraulic cylinder or tool.
