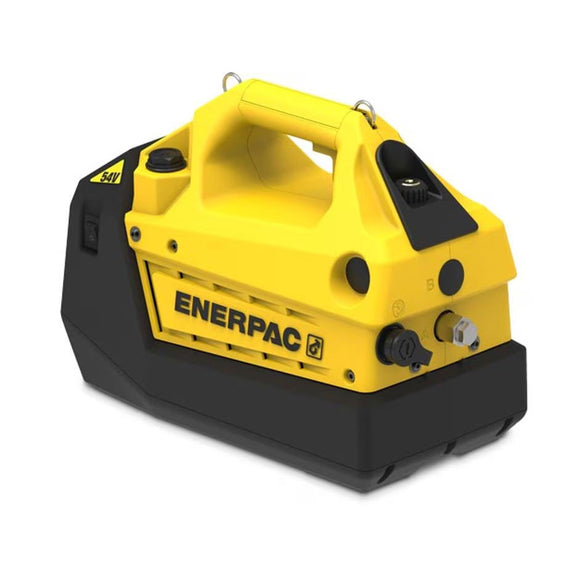

XC2302S Enerpac XC2 Series Cordless Hydraulic Pump changes the way the 2-liter XC2 pump is controlled. Instead of the manual valve used on XC2202 models, this version uses a solenoid valve with pendant control for single-acting cylinders and hydraulic tools.
Pendant Operation for Better Operator Positioning
The pendant allows hydraulic operation from a position away from the pump itself. That can be useful when the operator needs to watch the cylinder, tool, load, or workpiece while controlling the hydraulic cycle rather than reaching back to a valve lever on the power unit.
XC2302S is the pump-only configuration and does not include batteries or a charger. It is a logical choice for an existing Enerpac 54V battery fleet. Buyers who need a complete package can select XC2302SB with 115V charging or XC2302SE with 230V charging.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 2.0 L |
| Usable Oil Capacity | 122 inĀ³ (2.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Number of Batteries | 0 |
