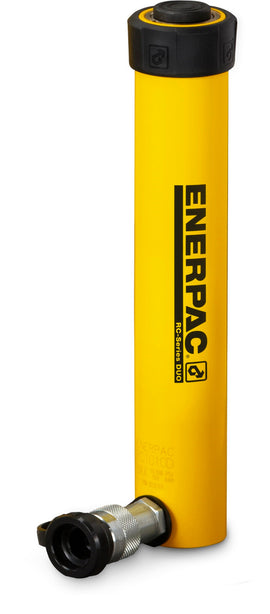

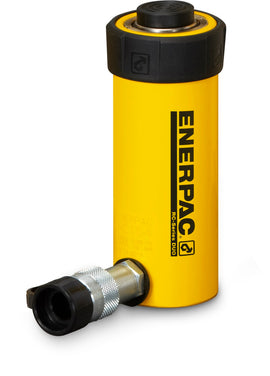

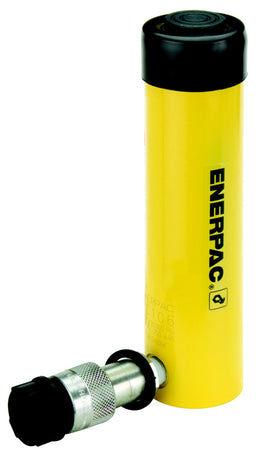

Enerpac general purpose hydraulic cylinders are built for everyday lifting, pushing, positioning, and maintenance applications where reliability and versatility are critical. This collection features Enerpac RC Series cylinders, the company's single-acting, spring-return general purpose hydraulic cylinder line.
RC Series cylinders are available in a wide range of capacities and stroke lengths, making it easier to match the cylinder to the load, available space, and required travel. Use the filters to compare models by capacity, stroke, and other specifications, or browse the complete Enerpac RC Series Cylinders collection.
Choosing the Right General Purpose Hydraulic Cylinder
Start by determining the load capacity and stroke required for the application. Capacity determines how much force the cylinder can safely produce, while stroke determines how far the plunger can extend. For applications requiring hydraulic-powered extension and retraction, see our Double-Acting Hydraulic Cylinders.

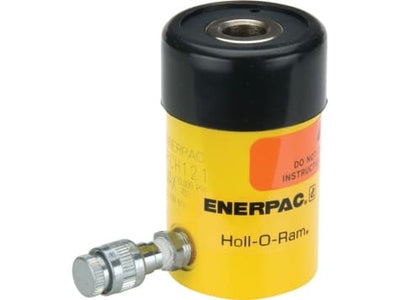

For more specialized applications, explore our Low-Height Hydraulic Cylinders, Hollow Plunger Cylinders, and High-Tonnage Hydraulic Cylinders.
What is new in the RC-TRIO
RC-TRIO is Enerpac's current version of the RC Series. Enerpac kept the model numbers, external dimensions and threads the same as earlier RC cylinders, so existing systems and accessories carry over.
| Feature | What Enerpac says it does |
|---|---|
| TRIO bearing system | Up to 4 hardened composite wear bands increase bearing area for greater side load resistance and longer cylinder life |
| TRIO stop ring | Capable of taking full cylinder extension force, with a wiper that helps keep contamination out during retraction |
| TRIO spring system | Hybrid pre-tensioned return springs for up to 3x faster retraction; the spring removes without special tools |
| Plunger | High-strength, nickel-plated steel with internal threads for fixturing |
| Saddle | Hardened and removable; CATS Series tilt saddles fit as accessories |
| Handling | Carry handles on cylinders from 33 to 55 lbs; heavier sizes have certified lifting eyes or optional handles |

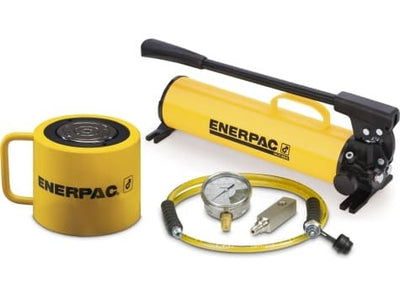

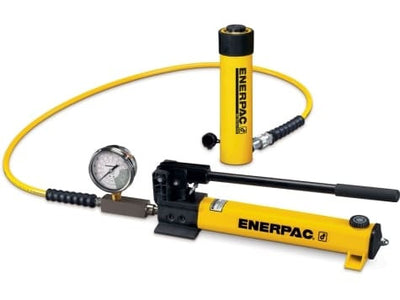

Build a complete RC cylinder system
A cylinder needs a pump, hose, gauge and oil to work. Here is the matching system Enerpac lists for the RC102:
| Component | Enerpac model for an RC102 | Shop |
|---|---|---|
| Hand or foot pump | P392 two-speed hand pump or P392FP foot pump | Hand Pumps |
| Air pump | XA11 for single-acting cylinders | Air Hydraulic Pumps |
| Hose | HC7206, 6 ft thermoplastic | Hydraulic Hoses |
| Gauge and adaptor | GF10P force and pressure gauge with GA2 adaptor | Pressure Gauges |
| Oil | LX101 for hand pumps or HF101 for powered pumps | Hydraulic Oil |
Larger RC cylinders need a gauge and pump sized to them. Send us your cylinder model and we will match the rest of the system.
Use only 80 percent of the rating
Enerpac states that rated load and stroke are maximum safe limits, and that good practice is to use only 80 percent of them. For lifting, size the cylinder so the load is no more than 80 percent of its capacity.
Keeping an older RC in service? See Hydraulic Cylinder Repair Parts and Hydraulic Cylinder Seal Kits.
