Choosing the proper hydraulic jack is key to safe and heavy lifting. Whether you're working on a car or managing construction materials, this guide explains how they work and the different types and gives you practical advice on finding the right one for you.
Main Points
- Hydraulic jacks work on Pascal's Law, using a confined hydraulic fluid to multiply an input force for lifting heavy loads, including bottles, floors, transmissions, and hydropneumatic jacks.
- Due to their high force exertion, hydraulic jacks are used in automotive, construction, and manufacturing industries. They are used for vehicle maintenance, pipe installations, and lifting heavy machinery.
- When choosing a hydraulic jack, consider the load capacity, maximum lifting height, and portability. Make sure the product has good construction, safety features, and a user-friendly design for optimal performance and safety.
What are Hydraulic Jacks: The Basics
At its core, a hydraulic jack is a device that uses hydraulic cylinders to lift heavy loads. The principle of operation of these jacks is based on Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally in all directions so the jack can lift loads.This simple principle is what powers these heavy-duty products as a filter.
How Hydraulic Jacks Work
The magic of hydraulic jacks is converting a small input force into a large output force. The force multiplication is done by applying Pascal's Law, which states that a force applied to a confined fluid is transmitted equally in all directions throughout the fluid. By pumping fluid into a cylinder, the built-up pressure causes a piston to exert a force big enough to lift a load.
A hydraulic jack has:
- A reservoir that holds the hydraulic fluid
- A pump that pressurizes the fluid
- A valve that controls fluid flow
- A cylinder that extends to lift the load
Types of Hydraulic Jacks
There are many hydraulic jacks, each with strengths and suited for different applications. Among the common types are:

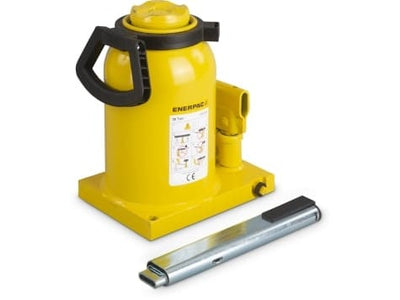

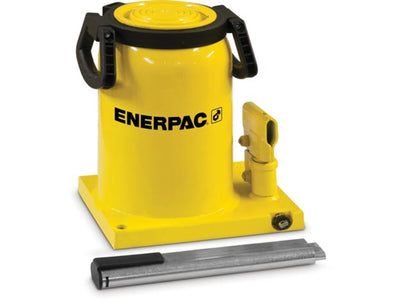

- Bottle jacks
- Floor jacks
- Transmission jacks
- Hydropneumatic jacks
Transmission jacks are used to remove and install transmissions. Hydropneumatic jacks are used for hydraulic lift and pneumatic operation and can handle heavy vehicle loads.
Hydraulic Jack Applications
Their many applications across different industries show the versatility of hydraulic jacks. They are used for large forces in lifting or pushing operations and are valuable assets in the automotive, construction, and manufacturing industries.
In the automotive industry, hydraulic jacks lift vehicles during repairs. The railway industry uses them to lift locomotives and railcars for maintenance and repair. In the construction industry, trench jacks (a type of hydraulic jack) are used to support trench walls to ensure the safety of workers during pipe installations and other underground utility work. In the mining industry, hydraulic jacks are used for lifting and roof support to ensure safety in underground excavations.
Automotive
The automotive industry uses hydraulic jacks extensively. In manufacturing and repair facilities, hydraulic jacks are used to lift vehicles to inspect and maintain the undercarriage. Their high precision and control when lifting and lowering vehicles make them a must-have in automotive applications.
Precision portability is another key factor. Many hydraulic jacks in the automotive industry are portable, so they can be used quickly and efficiently in roadside emergencies and tire changes. That's why hydraulic jacks are part of the automotive industry.
Construction
In the construction industry, hydraulic jacks are used to lift heavy loads from construction materials and equipment to entire buildings during renovation or relocation. Bridge construction uses hydraulic jacks to lift and position large structural components. They are also used in foundation repair work, where they adjust and reposition settled buildings back to their designed elevation.
Strand jacks (a type of hydraulic jack) are used for heavy lifting in construction. They use multiple steel wire strands to lift large objects incrementally, such as bridge sections or large building modules. That's how important hydraulic jacks are in the construction industry.
Manufacturing
The manufacturing industry uses hydraulic jacks extensively. In industrial warehouses and facilities, hydraulic jacks are used for material handling by lifting and moving materials and equipment on pallets. Steel mills use heavy-duty hydraulic jacks to lift and move large steel plates, rolls, and other heavy components.
Hydraulic jacks are used to position and move heavy components on assembly lines and production stages during manufacturing. They are also used to lift machinery for repairs and servicing. That's how versatile and important they are in the manufacturing industry.
How to Choose the Right Hydraulic Jack
When choosing the right hydraulic jack, consider the following:
- Load capacity: The jack should be able to support the weight of the vehicle or object to be lifted.
- Maximum lifting height: The jack should have the maximum lifting height required to lift the car or object to the desired height.
- Portability: A portable and easy-to-use jack is also a key factor.
Load Capacity
When choosing a hydraulic jack, make sure its load capacity is sufficient for the job. This is for safety and to prevent equipment failure when lifting a vehicle or other loads. Here are the guidelines:- The load capacity of a hydraulic jack should be greater than the weight of the vehicle's heaviest end.
- The heaviest end is usually 60% of the vehicle's total weight.
- Choose a jack with enough load capacity when lifting near the engine area.
Lifting Height
The maximum lifting height is another specification to consider when choosing a hydraulic jack. Most standard vehicles require 20 inches of lift. To be compatible with a particular car or object, check the hydraulic jack's lifting range and match it with the vehicle's clearance requirements.
High-lift hydraulic jacks are helpful for off-road vehicles that need higher ground clearance to lift effectively. Some features of high-lift hydraulic jacks are:
- Safety bypass systems to prevent overloading by not going beyond the maximum lifting height
- Heavy duty and durable to handle heavy loads
- Easy to use and operate
- Portable and compact for easy storage and transportation
Portability and Ease of Use
Portability and ease of use are also factors to consider when choosing a hydraulic jack. Bottle jacks are known for their simplicity and portability and are used for emergency tire changes because they can reach a high height. Low-profile hydraulic jacks are perfect for vehicles with low ground clearance, sports cars, and luxury vehicles.
The space to position the jack and the frequency of its movement will dictate the choice of a portable hydraulic jack. To minimize fatigue from full-stroke pumps, especially with limited space under the vehicle, consider the number of pumps needed to reach full height. Extra-long handles give more leverage and less effort when lifting heavy loads, which is a key to user-friendliness in design.
Buying Hydraulic Jacks: What to Look For
When buying a hydraulic jack from a shop, certain features should be looked for to ensure a high-quality and reliable product. These are the quality of construction, safety features, and user-friendly design.
Quality Construction
Quality of construction is a key factor to consider when buying a hydraulic jack. High-strength and durable materials like steel or alloy steel are used in hydraulic jack construction. Alloy steel offers the best balance of durability and user-friendliness, adding to portability without sacrificing performance.
The hydraulic ram of the jack, often made of hardened steel, is the key to withstanding repeated use without bending or breaking. High-quality hydraulic jacks also have welded seams and joints instead of bolted joints to add strength and minimize leaks or failures under pressure.
Safety Features
Safety is a top priority when dealing with hydraulic jacks. Many hydraulic jacks have a built-in safety overload feature to prevent users from lifting beyond the jack's rated capacity. This is done through a fluid bypass mechanism that will not allow the jack to lift if the maximum capacity is exceeded. Safety valves play a big role in this feature; they will stop the lifting process during an overload situation.
Some hydraulic jacks have stability features like broad bases or outriggers to prevent tipping when lifting heavy loads. To be safe, never exceed the jack's weight capacity and secure the load before lifting. These safety features make hydraulic jacks a reliable tool in many industries.
User Friendly Design
A user-friendly design can make using a hydraulic jack more efficient. Some features to look for:
- Single piston quick lift pump for easy use
- Low profile for low-clearance vehicles
- Long handle for easy movement
- Big wheels for smooth rolling
- A broad platform for stability during lift
Inflatable or airbag jacks are designed for precise and controlled lifts for rescue operations, vehicle maintenance, and industrial applications where fine lift adjustment is required. Other features, like a carrying handle, make them more portable and easier to position. All these user-friendly features make hydraulic jacks a versatile tool.
Maintenance and Troubleshooting Tips for Hydraulic Jacks
Maintenance is key to extending the life of a hydraulic jack and ensuring safe use. This means regular visual inspection, cleaning, and lubrication of moving parts.
Also, hydraulic jacks should be stored with pressure released and in the position recommended by the manufacturer to prevent air bubbles from forming in the hydraulic system.
Maintenance
Maintenance of hydraulic jacks:
- Cleaning the jack
- Lubricating all moving parts
- Check and top up hydraulic oil if necessary
Water in hydraulic oil looks foamy or milky. It can cause internal corrosion and should be addressed immediately to prevent further damage.
Proper storage of hydraulic jacks means releasing pressure and storing them as the manufacturer recommends to prevent damage when not used. This maintenance will not only extend the life of your hydraulic jack but also make it safe and efficient to use.
Troubleshooting
Like any equipment, hydraulic jacks can have issues. A lack of hydraulic fluid will not allow the ram to lift. This can be fixed by adding more fluid and pumping in the release position to release trapped air. Air in the hydraulic system will limit the lifting height of the jack, but purging the air will restore its full capacity.
Leaks in the hydraulic circuit will require replacing damaged seals, o-rings, or fittings and removing excess oil if the reservoir is overfilled. A malfunctioning ram that will not lift may be due to rust, lack of lubrication, overloading, or incorrect oil levels, which must be addressed accordingly. Troubleshooting these common issues will help maintain your hydraulic jack's performance and durability.
Conclusion
Hydraulic jacks are excellent tools that have changed many industries with their power, versatility, and efficiency. From understanding how it works to the different types and applications, we have explored the world of these devices. We have also learned how to choose the right hydraulic jack based on load capacity, lifting height, portability, and what to look for when buying one. We have also covered the maintenance and troubleshooting tips to extend the life and safe use of hydraulic jacks. Remember, the right hydraulic jack can make a big difference in your lifting job, so choose wisely!
FAQ
What is a hydraulic jack for?
Hydraulic jacks are used in the construction industry to lift heavy loads such as construction materials, equipment, and structures. They are also used in forklifts, bulldozers, and elevator systems.
Is a 2-ton jack enough for a car?
Yes, a 2-ton jack is enough to lift one tire of most cars since it has a 4000lb weight limit.
What is the difference between a hydraulic jack and a mechanical jack?
The main difference between hydraulic jacks and mechanical jacks is that hydraulic jacks have high transmission efficiency but cannot support heavy loads for a long period of time. Mechanical jacks have lower transmission efficiency but can support heavy loads for a longer duration.
What are the 3 types of hydraulic jacks?
The three types of hydraulic jacks are bottle jacks, toe jacks, and trolley jacks. These jacks are for specific purposes and come in different shapes and sizes.
How do hydraulic jacks work?
Hydraulic jacks work based on Pascal's Law, which allows them to lift loads by transmitting pressure equally in all directions.
