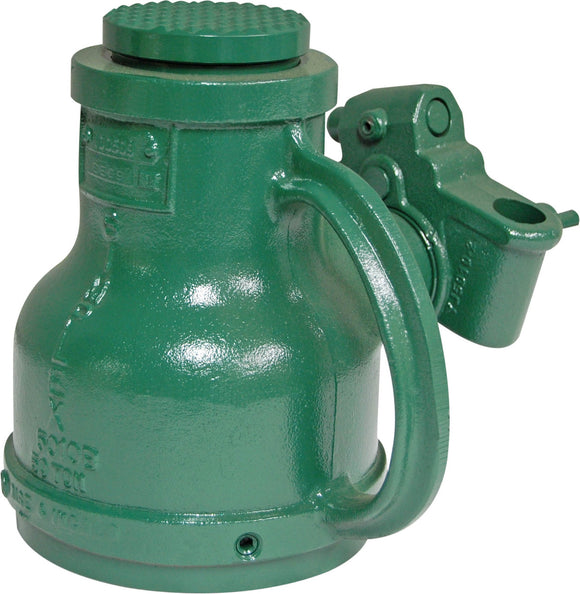

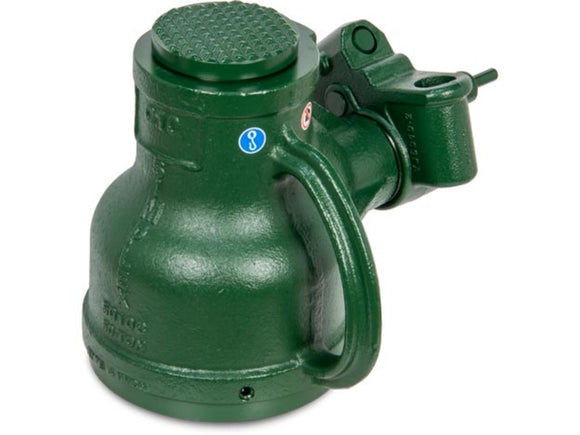

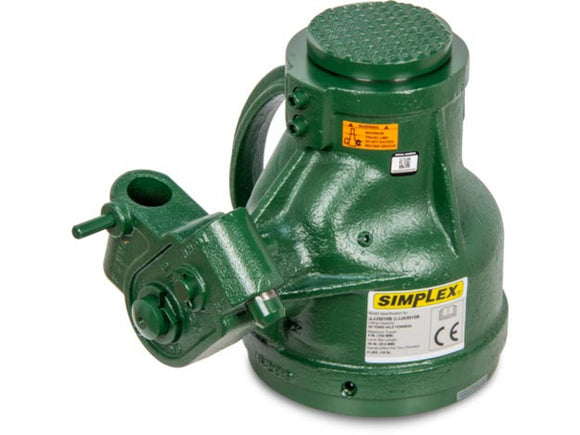

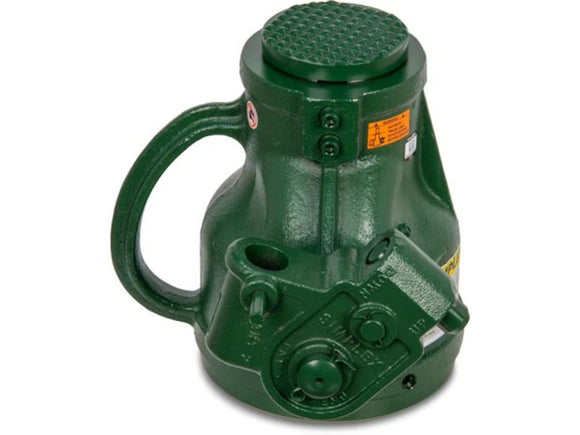

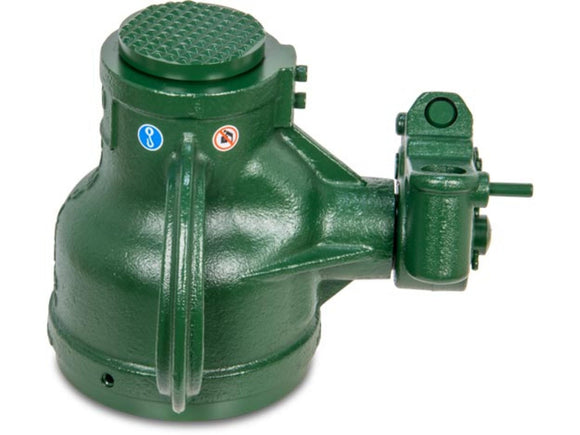

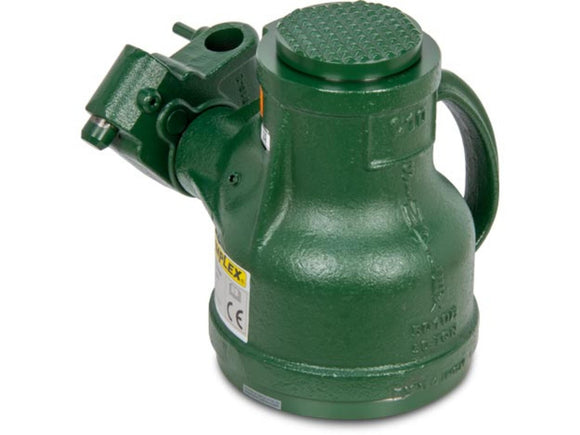

The Simplex JJ5010B is a steel-housing mechanical Super Jack for suitable heavy-load lifting and positioning applications.
Key specifications
- Capacity: 50 tons
- Travel: 4.00"
- Minimum height: 10.31"
- Maximum height: 14.31"
- Recommended lever bar: SLB56, sold separately
Before ordering
Confirm the load, stable base, contact point and lever clearance. Select the recommended lever bar separately and follow manufacturer operating requirements.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 50 Ton |
|---|---|
| Stroke | 4 in |
| Power Source | Mechanical |
| Capacity Range | 26-50 Ton |
| Handle Effort per Ton | 4 lb |
| Jack Housing Material | Steel |
| Socket | 8.81 in |
| Weight | 80 lb |
