Genuine Enerpac and Simplex cylinder accessories: tilt and grooved saddles, plunger attachments, flange nuts, clevis eyes, mounting flanges and clamp arms. Not sure it fits? Send us your cylinder's model number and we will confirm the accessory before it ships.
Choose by what you need the cylinder to do
| Accessory | What it is for | Example models |
|---|---|---|
| Tilt saddles | Contact a load surface that is not level. Enerpac lists its CATS Series tilt saddles as compatible with the RC-TRIO cylinder. | CATS30 for RAC20, RAC30 and RAR30 |
| Grooved and threaded hollow saddles | Replace or upgrade the standard saddle; hollow saddles suit center hole cylinders | A102G and A252G grooved saddles for RC cylinders |
| Plunger attachments | Fit the plunger with a tool for pushing, pulling or spreading. Attachments are sized by cylinder capacity, such as 2.5, 5 and 12.5 ton RC sets and 4 to 25 ton RD sets. | RC and RD cylinder attachments |
| Flange nuts and mounting flanges | Mount the cylinder by its collar threads. Flange nuts are listed by thread size. | FN301 (1.250-16 UN), FN481 (1.875-16 UN), FN651 (2.500-16 UN) |

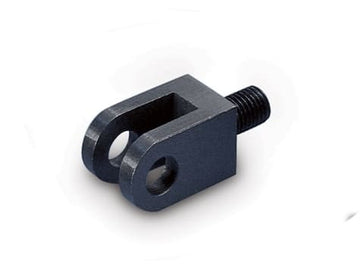

| Clevis eyes, rod clevises and pins | Pin-mount the base or rod end so the cylinder can pivot | Base clevis eyes, tie rod cylinder rod clevises |
| Spherical contact bolts | Workholding contact points on the plunger | Spherical contact bolts |
| Clamp arms, T-arms and mounting blocks | Workholding swing and pull clamp tooling | Standard and long clamp arms, pivoting T-arms |
| Accumulators | Pre-charged accumulators for workholding circuits | Pre-charged accumulators |
Getting the fit right
- Match the thread. Collar threads and plunger threads differ by cylinder series and capacity. Enerpac notes that RC-TRIO collar threads and base mounting holes are made for fixturing, and that RC-TRIO threads are unchanged from earlier RC cylinders, so RC accessories carry over.
- Match the capacity. An attachment or saddle should be rated for the cylinder it goes on.
- Stay inside the 80 percent rule. Enerpac states that rated load and stroke are maximum safe limits, and that good practice is to use only 80 percent of them.
