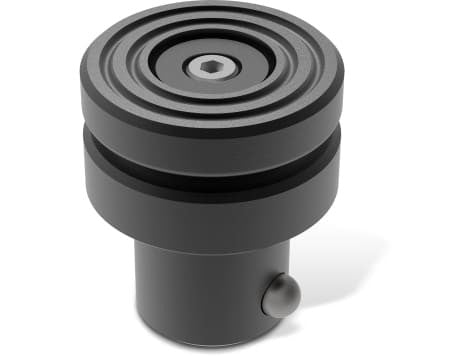

The Enerpac CATS12 is a tilt saddle for 10-15 ton RC-series cylinders, and 10 ton RR-series cylinders. It tilts up to 5 degrees to keep full contact with a load that is not square to the cylinder.
Side load is one of the most common causes of cylinder damage. It can happen even with a vertical load when the cylinder is extended a long way, especially with long-stroke cylinders, or when the saddle does not sit flat on the load. A tilt saddle increases contact with the load and helps protect the cylinder. Enerpac CATS tilt saddles bolt to the cylinder, so they can be used safely in any orientation without falling off.
Key features
- Up to 5 degrees of tilt
- Bolts to the cylinder for use in any orientation
- Nitrocarburized surface treatment for corrosion protection
- Fits 10-15 ton RC-series cylinders, and 10 ton RR-series cylinders
Frequently asked questions
Which cylinders does the CATS12 fit?
10-15 ton RC-series cylinders, and 10 ton RR-series cylinders.
How far does the CATS12 tilt?
Up to 5 degrees.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Cylinder Compatibility | RC, RR |
|---|---|
| Cylinder Series Compatibility | RC, RR |
| For Use with Cylinder Capacity | 10, 15 ton |
| Saddle Tilt | 5 degree |
| Saddle Type | Tilt |
| Tilt Saddle Diameter | 1.38 in |
