Enerpac hydraulic cylinders provide controlled hydraulic force for lifting, pushing, pulling, positioning, maintenance, construction, manufacturing, and workholding applications. From compact low-height cylinders to 1000-ton heavy-lifting models and specialized fixture cylinders, Enerpac offers cylinder configurations for a wide range of industrial applications.
Use the categories below to narrow the selection by cylinder design, operating method, construction, capacity, clearance, or application.
Shop Enerpac Hydraulic Cylinders by Type

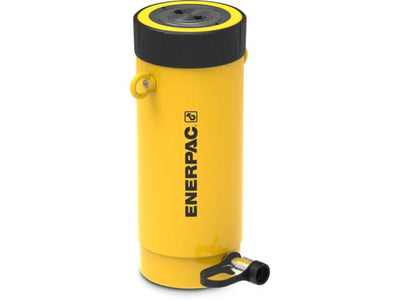

General Purpose Hydraulic Cylinders
Single-acting Enerpac RC Series cylinders for everyday lifting, pushing, positioning, maintenance, and industrial applications.
High Tonnage Hydraulic Cylinders
Heavy-duty cylinders for high-capacity lifting and positioning applications, including single-acting, double-acting, and lock nut designs.

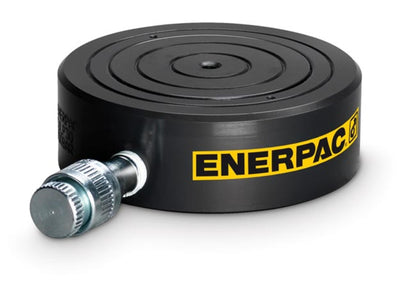

Low Height Hydraulic Cylinders
Low-profile, pancake, ultra-flat, and telescopic cylinders designed to generate substantial lifting force where available clearance is limited.
Hollow Plunger Hydraulic Cylinders
Center-hole cylinders for pushing, pulling, tensioning, testing, and applications requiring rods, cables, bolts, or tooling to pass through the cylinder.
Lock Nut Hydraulic Cylinders
Hydraulic cylinders with mechanical lock nuts for applications where a raised load must remain securely supported after lifting.

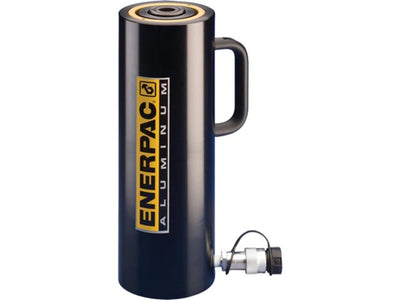

Aluminum Hydraulic Cylinders
Lightweight aluminum cylinders that reduce tool weight for field service, maintenance, lifting, and positioning applications.
Telescoping Hydraulic Cylinders
Multi-stage hydraulic cylinders that provide increased stroke from a compact collapsed height.
Hydraulic Pull Cylinders
Specialized cylinders designed to generate controlled pulling force for positioning, tensioning, alignment, and maintenance work.
Hydraulic Workholding Cylinders
Workholding cylinders for clamping, positioning, pressing, pulling, and fixture integration in machining, manufacturing, assembly, and automated production systems.
Single-Acting and Double-Acting Hydraulic Cylinders
One of the first decisions when selecting a hydraulic cylinder is whether the application requires single-acting or double-acting operation.
Single-acting hydraulic cylinders use hydraulic pressure to move the plunger in one direction, with return provided by a spring, load, or other external force depending on the cylinder design.
Double-acting hydraulic cylinders use hydraulic pressure for both extension and retraction. This provides positive control in both directions and can be useful for applications requiring controlled return, repeated cycling, or faster retraction.
How to Choose an Enerpac Hydraulic Cylinder
Start with the maximum force required for the application. Cylinder capacity must be sufficient for the load throughout the complete operating cycle and should be selected as part of the overall hydraulic system rather than as an isolated component.
Next, determine the required stroke and available collapsed height. Stroke determines how far the plunger can travel, while collapsed height determines whether the cylinder will physically fit into the available space before operation begins.
Then consider cylinder action, return method, construction material, plunger configuration, mounting requirements, and whether the application requires features such as a hollow plunger, mechanical lock nut, low-profile design, or lightweight aluminum construction.
Finally, verify that the pump, valve, hoses, couplers, gauges, and other hydraulic components are compatible with the selected cylinder's pressure, oil volume, and operating requirements.
Enerpac Cylinders for Specialized Applications
Applications involving particularly long travel can be narrowed through our Long Stroke Hydraulic Cylinders collection. Manufacturing and repetitive production applications can also be explored through our Precision Production Hydraulic Cylinders and Hydraulic Workholding Cylinders collections.
For customers looking for Simplex-branded cylinder products, browse our separate Simplex Hydraulic Cylinders collection.
