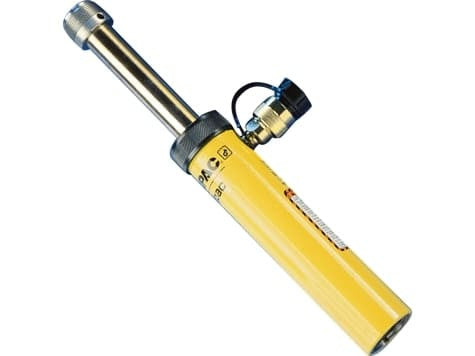

The Enerpac BRC46 is a 5.6 ton single-acting hydraulic pull cylinder with a 5.5 in stroke, rated for 10,000 psi. It weighs 10 lb.
BRC pull cylinders are single-acting, spring-return cylinders built to pull rather than push. Threads on the collar, plunger and base accept attachments such as chains, saddles, extension tubes and the components in Enerpac MS-series maintenance sets. Plunger blow-out protection and a hard chrome-plated plunger add durability. Typical uses include cable and bar tensioning and other pulling jobs. Rated for 10,000 psi and compliant with ASME B30.1.
Key features
- Single-acting, spring return
- Threaded collar, plunger and base for attachments
- Plunger blow-out protection
- Hard chrome-plated plunger for corrosion resistance
- Rated for 10,000 psi
Before you order
For the longest service life, Enerpac recommends using no more than 80 percent of the rated capacity and stroke. Always use a gauge to monitor system pressure.
Frequently asked questions
What is the capacity and stroke of the Enerpac BRC46?
5.6 tons at 10,000 psi, with 5.5 in of stroke.
Is the BRC46 single-acting or double-acting?
Single-acting with spring return. Use a hand pump or a powered pump with a 3-way valve and one hose.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | BRC |
| Cylinder Type | Hydraulic Pull Cylinders |
| Load Capacity | 5.6 Ton |
| Cylinder Stroke | 5.50 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
