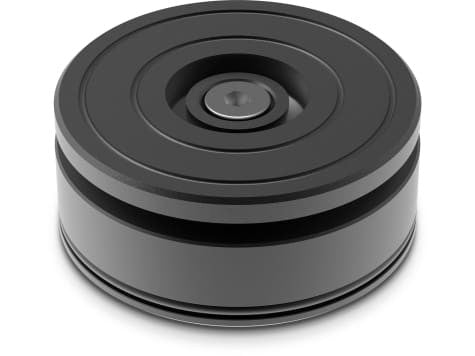

The Enerpac CATS50 is a tilt saddle for 50 ton HCG, HCR, RAC and RAR-series cylinders. It tilts up to 5 degrees to keep full contact with a load that is not square to the cylinder.
Side load is one of the most common causes of cylinder damage. It can happen even with a vertical load when the cylinder is extended a long way, especially with long-stroke cylinders, or when the saddle does not sit flat on the load. A tilt saddle increases contact with the load and helps protect the cylinder. Enerpac CATS tilt saddles bolt to the cylinder, so they can be used safely in any orientation without falling off.
Key features
- Up to 5 degrees of tilt
- Bolts to the cylinder for use in any orientation
- Nitrocarburized surface treatment for corrosion protection
- Fits 50 ton HCG, HCR, RAC and RAR-series cylinders
Frequently asked questions
Which cylinders does the CATS50 fit?
50 ton HCG, HCR, RAC and RAR-series cylinders.
How far does the CATS50 tilt?
Up to 5 degrees.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Cylinder Compatibility | RAC, RAR, HCG, HCR |
|---|---|
| Cylinder Series Compatibility | RAC, RAR, HCG, HCR |
| For Use with Cylinder Capacity | 50 ton |
| Saddle Tilt | 5 degree |
| Saddle Type | Tilt |
