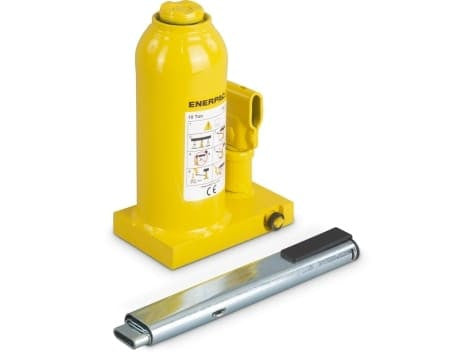

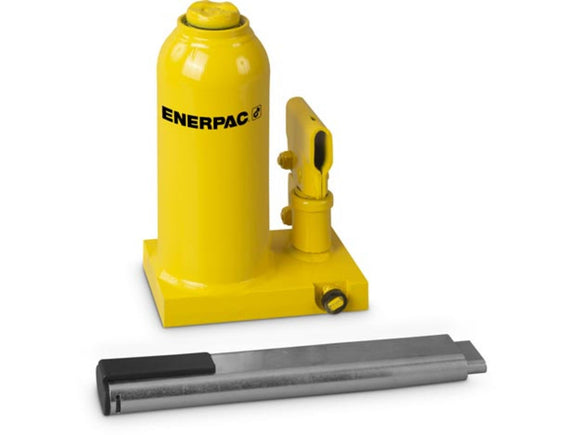

The Enerpac GBJ010A is a self-contained 11-ton hydraulic bottle jack with a 5.91" hydraulic stroke. A screw extension provides additional initial height adjustment.
Key specifications
- Capacity: 11 tons
- Hydraulic stroke: 5.91"
- Minimum height: 8.62"
- Maximum height: 17.48"
- Screw extension: 2.95"
Before ordering
Check the load, lifting point, base support and starting clearance. Use suitable mechanical supports after lifting; a hydraulic jack alone must not be used to support a load during work.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 11 Ton |
|---|---|
| Stroke | 5.91 in |
| Capacity Range | 6-10 Ton, 11-25 Ton |
| Oil Capacity | 9.29 oz |
| Screw Extension | 2.95 in |
| Weight | 14.1 lb |
