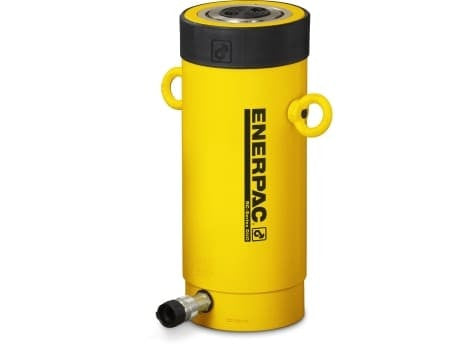

The Enerpac RC1006 is a single-acting hydraulic cylinder intended for single-acting hydraulic lifting and positioning where a straightforward spring-return cylinder is appropriate. This model is specified with a rated capacity of 103.1 tons and a stroke of 6.63 in.
Key specifications
- Capacity: 103.1 tons
- Stroke: 6.63 in.
- Series: RC
Product features
- Unique GR2 Bearing Design, reduces wear, extending life Collar threads and plunger threads enable easy fixturing.
- Designed for use in all positions.
- High strength alloy steel for durability.
- Redesigned cylinder thread protector for ease of use.
- Heavy-duty, pretensioned spring improves retraction speed.
Selection considerations
Selection should be based on required lifting force, stroke and installation clearance, followed by confirmation of compatible hydraulic components.
Specifications
| Load Capacity | 103.1 Ton |
|---|---|
| Cylinder Type | General Purpose Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 6.63 in |
