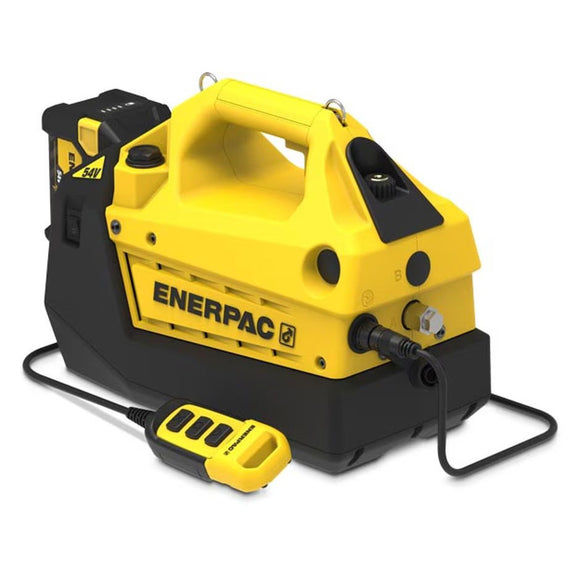

XC2302SE Enerpac XC2 Series Cordless Hydraulic Pump is the 230V kit configuration of the pendant-controlled 2-liter XC2 pump. It is designed for single-acting hydraulic cylinders and tools and uses a solenoid valve so the operator can control the hydraulic function from the pendant rather than directly at the pump.
For Sites That Need Pendant Control and 230V Charging
This configuration is especially useful when pump placement and operator position are not the same. The pendant lets the user remain focused on cylinder travel or tool movement, while the cordless power unit can be positioned where it best fits the hydraulic setup.
Two 54V, 4 Ah batteries and a 230V charger are included. The comparable 115V package is XC2302SB, and XC2302S is the pump-only version. If manual valve operation is preferred instead of pendant control, the XC2202 family is the closer match.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 2.0 L |
| Usable Oil Capacity | 122 inĀ³ (2.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 230V |
