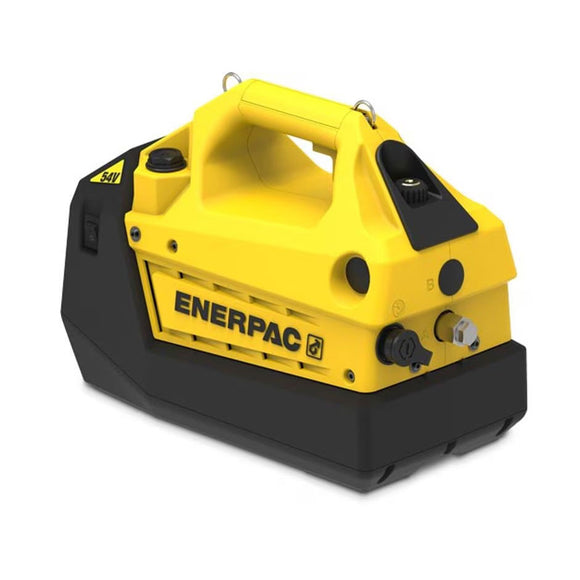

XC2304S Enerpac XC2 Series Cordless Hydraulic Pump combines pendant-controlled hydraulic operation with the larger 4-liter reservoir in the single-acting XC2 range. It is intended for applications that need both additional oil capacity and the ability to operate the pump from a position closer to the work.
Large Reservoir, Solenoid Valve, Pump-Only Configuration
The 4-liter reservoir gives XC2304S more available oil volume than the 2-liter XC2302 models, making it the stronger choice for larger compatible cylinders or hydraulic circuits with greater oil demand. Pendant control separates it from the XC2204 manual-valve family and can improve visibility of the tool or load during operation.
This model is supplied without batteries or a charger. It is best suited to users who already own compatible Enerpac 54V batteries. XC2304SB adds a 115V charger and batteries, while XC2304SE provides the complete package with 230V charging.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 inĀ³ (4.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Number of Batteries | 0 |
