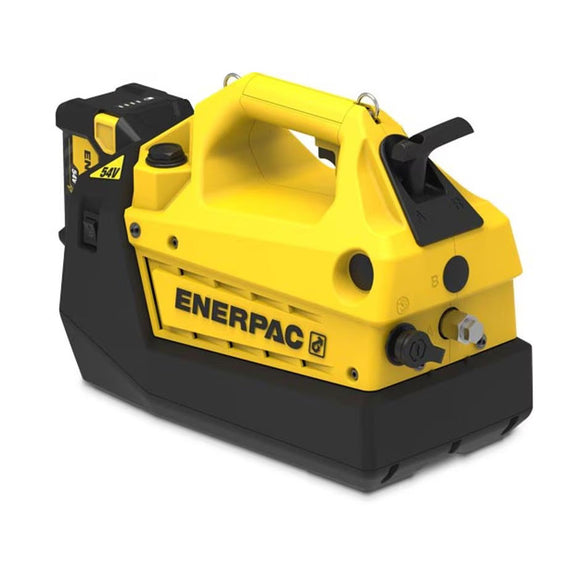

The Enerpac XC2202MB provides cordless hydraulic power for compatible single-acting cylinders and tools. This kit combines a 2.0-liter usable oil capacity with the 54V battery system and a 115V North American charger.
Key specifications
- Usable oil capacity: 2.0 L
- Maximum hydraulic pressure: 10,000 psi
- Valve: 3-way, 2-position manual
- Battery system: 54V, 4 Ah
- Included charger supply: 115V, North American plug
- Oil flow at rated pressure: 0.33 L/min
Included components
- 1 × XC2202M pump
- 2 × 54V, 4 Ah lithium-ion batteries
- 1 × 115V North American battery charger
- 1 × shoulder strap
Before ordering
Confirm tool pressure, required oil volume, valve action and hydraulic connections. Select compatible hoses separately. Manual-valve kits do not include a control pendant.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 2.0 L |
| Usable Oil Capacity | 122 in³ (2.0 L) |
| Valve Configuration | 3-way, 2-position manual valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Manual |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 115V |
