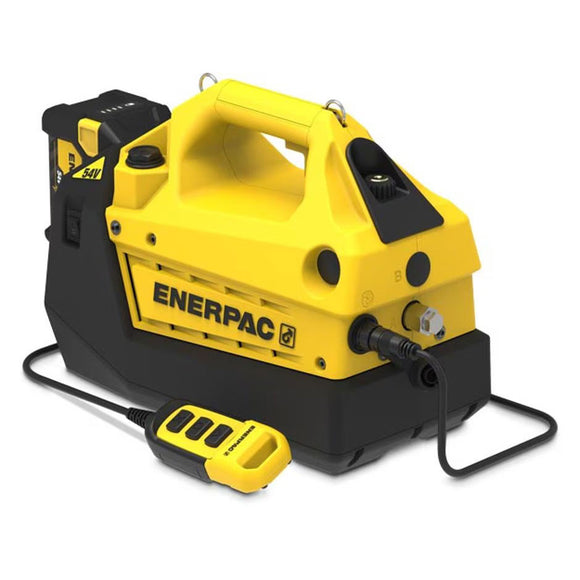

XC2304SB Enerpac XC2 Series Cordless Hydraulic Pump is a complete 4-liter, pendant-controlled kit for single-acting hydraulic cylinders and tools. It combines the larger reservoir with solenoid valve operation, making it a strong fit where both oil volume and operator positioning are important.
Complete 115V Kit for Higher Oil-Volume Applications
With pendant control, the operator can concentrate on the cylinder or tool instead of standing at the pump valve. The 4-liter reservoir provides additional capacity for larger hydraulic requirements, while the battery-powered XC2 platform avoids running an electrical power cord to the pump during operation.
XC2304SB includes two 54V, 4 Ah batteries and a 115V charger. Users who already have compatible batteries can select XC2304S, while XC2304SE is the corresponding 230V kit. For applications where manual valve control is preferred, the XC2204 family provides the same reservoir class with a different control approach.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 inĀ³ (4.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 115V |
