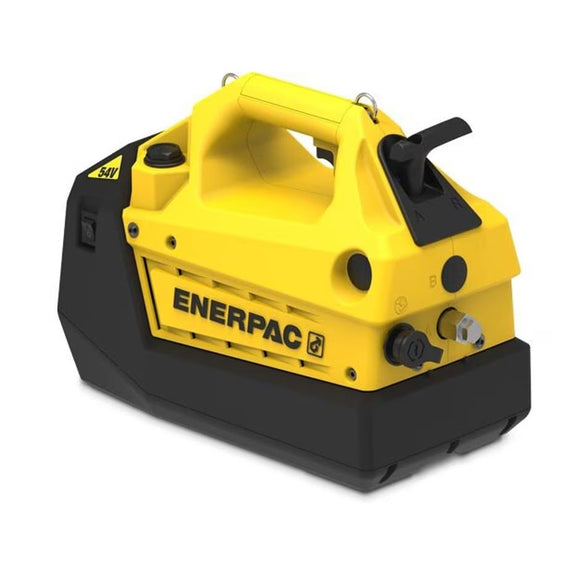

XC2202M Enerpac XC2 Series Cordless Hydraulic Pump combines a 2-liter reservoir with manual valve control for single-acting cylinders and hydraulic tools. It is the smaller-reservoir manual model in this part of the XC2 range, giving the operator more oil capacity than the compact SC Series without moving to the 4-liter XC2204 configuration.
Manual Control with a 2-Liter Reservoir
Enerpac designed the XC2 cordless platform with a brushless motor, two-stage hydraulic pump element, 54V battery power, and a bladder-style reservoir that allows operation in different orientations while helping protect the oil from contamination. The variable-speed trigger gives the operator finer control over cylinder or tool movement.
XC2202M is supplied without batteries or a charger. It therefore makes the most sense for users who already own compatible Enerpac 54V battery equipment. If a complete 115V or 230V charging package is required, the XC2202MB and XC2202ME versions provide the same basic manual-valve, 2-liter configuration with batteries and charger included.
Replacing an XC1202M?
The XC1202M (28V, 120 in³, single-acting, 3-way manual valve) is no longer offered. The XC2202M is its current equivalent: the same single-acting, manual-valve layout with a 2-liter reservoir, on Enerpac's 54V XC2 platform. Note that XC1 28V batteries and chargers do not fit the XC2.
Specifications
| Series | XC2 |
|---|---|
| Pump Series | XC2 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Battery |
| Oil Flow - No Load | 160 in³/min |
| Oil Flow - Max Pressure | 20 in³/min |
| Reservoir Capacity | 2.0 L |
| Usable Oil Capacity | 122 in³ (2.0 L) |
| Valve Configuration | 3-Way, 2-Position Manual |
| Control Type | Manual |
| Cylinder Compatibility | Single-Acting |
| Battery Capacity | 4 Ah |
| Battery Included | No |
| Battery Voltage | 54V |
| Charger Included | No |
| Number of Batteries | 0 |
