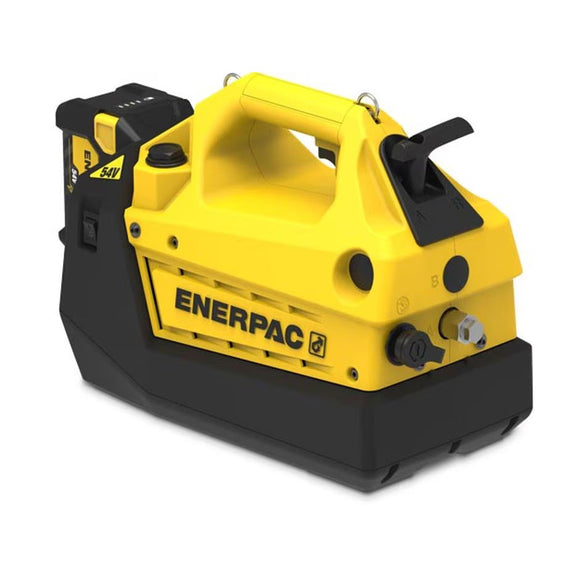

The Enerpac XC2204MB provides cordless hydraulic power for compatible single-acting cylinders and tools. This kit combines a 4.0-liter usable oil capacity with the 54V battery system and a 115V North American charger.
Key specifications
- Usable oil capacity: 4.0 L
- Maximum hydraulic pressure: 10,000 psi
- Valve: 3-way, 2-position manual
- Battery system: 54V, 4 Ah
- Included charger supply: 115V, North American plug
- Oil flow at rated pressure: 0.33 L/min
Included components
- 1 × XC2204M pump
- 2 × 54V, 4 Ah lithium-ion batteries
- 1 × 115V North American battery charger
- 1 × shoulder strap
Before ordering
Confirm tool pressure, required oil volume, valve action and hydraulic connections. Select compatible hoses separately. Manual-valve kits do not include a control pendant.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Series | XC2 |
|---|---|
| Pump Series | XC2 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Battery |
| Oil Flow - No Load | 160 in³/min |
| Oil Flow - Max Pressure | 20 in³/min |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 in³ (4.0 L) |
| Valve Configuration | 3-Way, 2-Position Manual |
| Control Type | Manual |
| Cylinder Compatibility | Single-Acting |
| Battery Capacity | 4 Ah |
| Battery Included | Yes |
| Battery Voltage | 54V |
| Charger Included | Yes |
| Charger Voltage | 115V |
| Number of Batteries | 2 |
