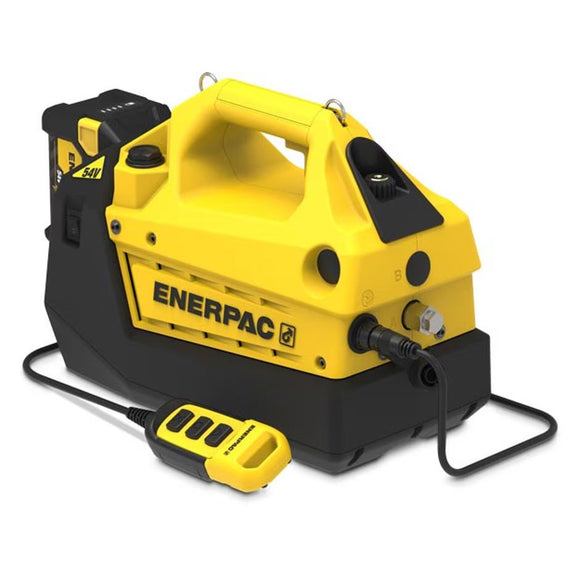

XC2304SE Enerpac XC2 Series Cordless Hydraulic Pump brings together the larger 4-liter reservoir, pendant control, and a 230V charging package. It is designed for single-acting cylinders and tools in mobile hydraulic applications where the operator needs more oil capacity than the 2-liter models provide.
230V Kit with Pendant-Controlled Operation
The combination of a solenoid valve and pendant lets the pump be positioned independently from the operator, which can make it easier to watch the hydraulic tool, cylinder, or load during movement. The larger reservoir extends the useful range of the XC2 cordless format to applications with greater oil-volume requirements.
XC2304SE includes two 54V, 4 Ah batteries and a 230V charger. It is the 230V counterpart to XC2304SB. XC2304S omits the batteries and charger for existing 54V users, while the XC2204 models are the manual-valve alternatives in the same reservoir size.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 inĀ³ (4.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 230V |
