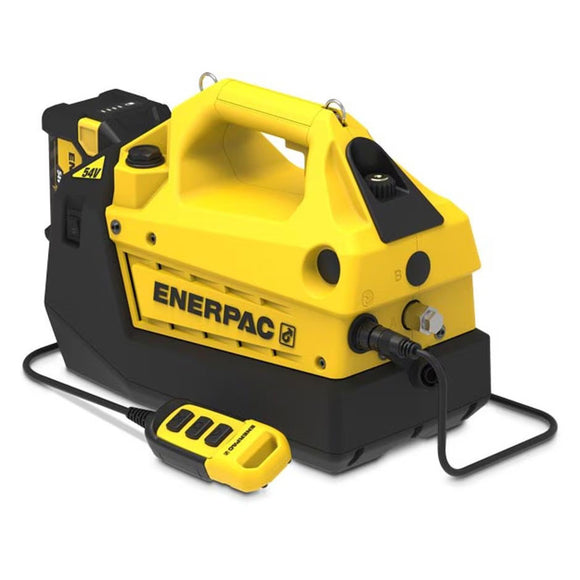

The Enerpac XC2302SB provides cordless hydraulic power for compatible single-acting cylinders and tools. This kit combines a 2.0-liter usable oil capacity with the 54V battery system and a 115V North American charger.
Key specifications
- Usable oil capacity: 2.0 L
- Maximum hydraulic pressure: 10,000 psi
- Valve: 3-way, 2-position solenoid
- Battery system: 54V, 4 Ah
- Included charger supply: 115V, North American plug
- Oil flow at rated pressure: 0.33 L/min
Included components
- 1 × XC2302S pump
- 2 × 54V, 4 Ah lithium-ion batteries
- 1 × 115V North American battery charger
- 1 × shoulder strap
- 1 × CC131, 3-m cord control pendant
Before ordering
Confirm tool pressure, required oil volume, valve action and hydraulic connections. Select compatible hoses separately and confirm tool return requirements.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 2.0 L |
| Usable Oil Capacity | 122 in³ (2.0 L) |
| Valve Configuration | 3-way, 2-position solenoid valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Pendant |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 115V |
