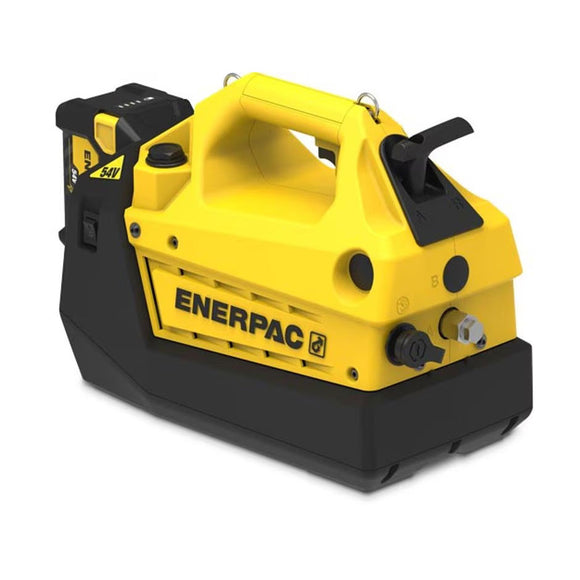

XC2204ME Enerpac XC2 Series Cordless Hydraulic Pump is the 230V kit version of the 4-liter manual-valve XC2 pump. Its larger reservoir makes it better suited than the 2-liter models to hydraulic circuits that need additional usable oil volume, while battery power keeps the pump independent of an AC power cord during operation.
Large-Reservoir XC2 Pump with 230V Charging
Enerpac's XC2 design combines a brushless motor, two-stage pump element, variable-speed trigger, and bladder-type oil reservoir. The reservoir design supports operation in different orientations, which can be valuable when the pump must be carried to the work rather than positioned permanently on a bench or power unit.
This package includes two 54V, 4 Ah batteries and a 230V charger. XC2204ME is therefore the appropriate manual-valve 4-liter choice where 230V charging is required. The XC2204MB provides the comparable 115V kit, while XC2204M is supplied without the battery-and-charger package.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 inĀ³ (4.0 L) |
| Valve Configuration | 3-way, 2-position manual valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Manual |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 230V |
