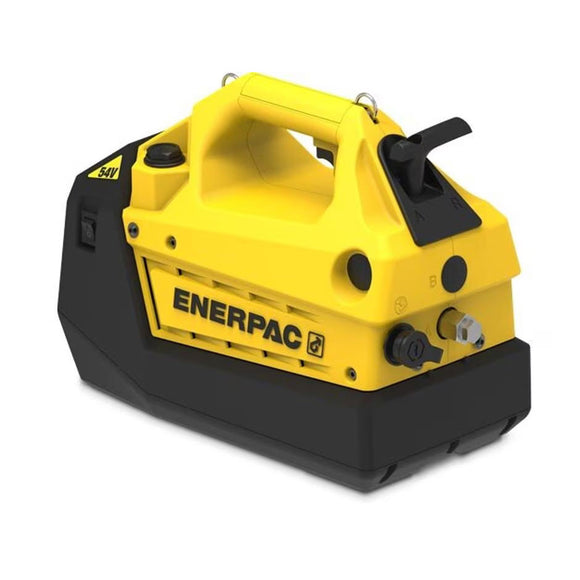

XC2204M Enerpac XC2 Series Cordless Hydraulic Pump is the larger-reservoir manual model for single-acting cylinders and tools. Its 4-liter reservoir is intended for applications that require more available oil than the 2-liter XC2202 configuration, including larger cylinders or hydraulic setups with greater oil-volume demand.
More Reservoir Capacity Without Giving Up Cordless Operation
Enerpac's XC2 platform combines a brushless DC motor and two-stage hydraulic pump element with a 54V battery system. The bladder reservoir allows the pump to work in different orientations and helps isolate the hydraulic oil from external contamination, an advantage when the pump is moved around a jobsite or used in less-than-ideal positions.
XC2204M uses manual valve control and is supplied without batteries or a charger. It is therefore aimed at users who already have compatible Enerpac 54V battery equipment and want the larger XC2 reservoir. Complete kit versions are available as XC2204MB for 115V charging and XC2204ME for 230V charging.
Specifications
| Pump Series | XC2 Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 4.0 L |
| Usable Oil Capacity | 241 inĀ³ (4.0 L) |
| Valve Configuration | 3-way, 2-position manual valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Manual |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Number of Batteries | 0 |
