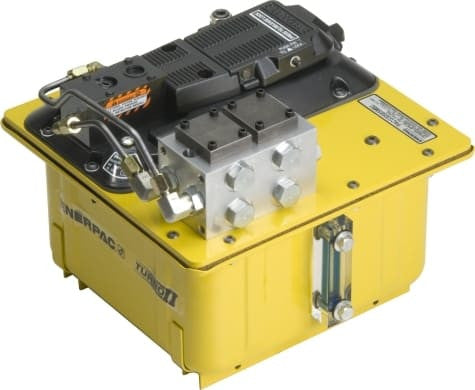

The reason to choose PACG50S8SWM10 is its exact combination of remote/manifold valve architecture and 462 in³ oil capacity. It is part of Enerpac's Turbo II 5000 Series higher-pressure-flow group.
PACG5005SB is the nearest smaller-reservoir alternative (230 in³). PACG30S8SWM10 keeps the same reservoir/control concept but changes to the 3000 Series flow profile.
Valve-Manifold Capacity Is the Main Difference
PACG50S8SWM10 is built for the most expandable PACG valve arrangement in this group. Its 462 in³ reservoir feeds a VP manifold that can accommodate one to eight compatible valves, making valve count—not just pump output—the defining selection issue.
The pump uses the Turbo II 5000 Series flow profile. Enerpac lists 20 in³/min @ 5,000 psi at rated pressure, so this is the pressure-oriented choice relative to the matching 3000 Series configuration with the same control style.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | VP Valve Manifold, 1–8 Valves |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
