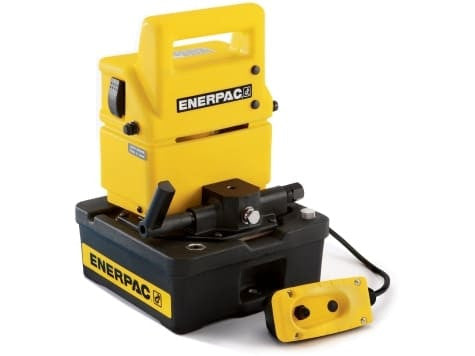

PUD1300B is an Enerpac Economy Electric Hydraulic Pump configured around single-acting advance / hold / retract operation. The 0.5 gal reservoir is at the smaller end of this series, which can reduce unnecessary oil volume when the connected circuit does not require one of the larger reservoir options.
Model selection becomes clearer against PUD1300E. In that comparison, input voltage is 115V on PUD1300B versus 230V on PUD1300E.
Enerpac’s PUD models are the remotely controlled dump-valve members of the compact PU economy pump family. The pendant moves pump control away from the power unit, which is useful when the operator needs to watch the tool or cylinder. For single-acting equipment, PUD1300B uses an electric dump-and-hold valve with advance / hold / retract functionality.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | PUD Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min @ 10,000 psi |
| Reservoir Capacity | 0.5 gal |
| Valve Configuration | Electric dump-and-hold valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
