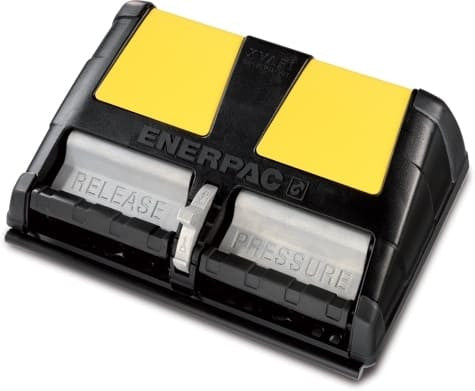

XA11 Enerpac XA Air Hydraulic Foot Pump is the basic single-acting configuration in this four-model XA group. It uses a 3-way valve and omits the integrated gauge found on XA11G.
The Simplest XA Single-Acting Configuration
This model is a good fit when pressure indication is provided elsewhere and the application only needs single-acting advance, hold and retract. Double-acting cylinders require the V versions, which use a 4-way valve.
The XA platform still provides XVARI foot-pedal metering for controlled oil flow and a sealed 61 in³ bladder reservoir that supports operation in different positions while helping protect the hydraulic fluid from contamination.
Specifications
| Pump Series | XA Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 15 in³/min @ 10,000 psi |
| Reservoir Capacity | 61 in³ |
| Pump Operation | Foot Operated |
| Valve Configuration | 3-Way, 3-Position |
| Valve Operation | Foot Pedal |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 30–125 psi |
| Air Consumption | 10–35 scfm |
| Gauge Included | No |
