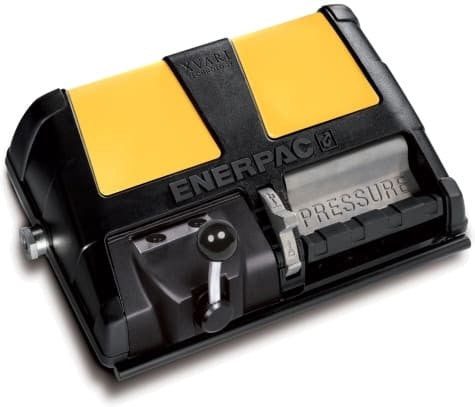

XA11V Enerpac XA Air Hydraulic Foot Pump is the double-acting XA configuration supplied without an integrated pressure gauge. It retains the 4-way valve and XVARI foot control used for powered advance and retract.
Double-Acting XA Operation Without the Gauge Package
This model is appropriate when system pressure is monitored elsewhere or an external gauge arrangement is preferred. The absence of the built-in gauge is the main distinction from XA11VG; hydraulic control remains focused on double-acting cylinders.
Enerpac's XVARI pedal varies oil flow for controlled positioning, and the sealed bladder reservoir supports multi-position operation while helping isolate the oil from external contamination.
Specifications
| Pump Series | XA Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 15 in³/min @ 10,000 psi |
| Reservoir Capacity | 61 in³ |
| Pump Operation | Foot Operated |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Foot Pedal |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 30–125 psi |
| Air Consumption | 10–35 scfm |
| Gauge Included | No |
