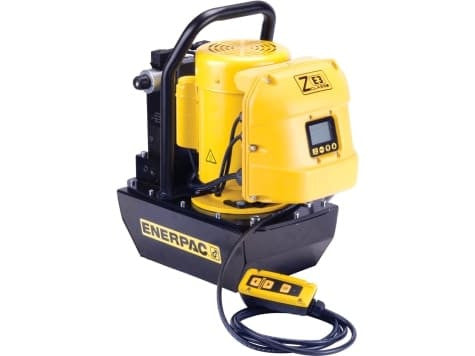

ZE3308SB occupies a distinct point in the Enerpac Electric Hydraulic Pump family because of its LCD-equipped remote control configuration. Because this model carries LCD control, it offers a different operator interface from the classic/non-LCD variants in the same family.
The electrical requirement is 115V, single phase, 50/60 Hz, so site power should be confirmed before the pump is specified.
Enerpac offers the ZE family with multiple valve and control arrangements, so the pump can be matched to both the cylinder type and the way the operator needs to control the circuit. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. The LCD control package adds pump status and diagnostic information. For single-acting equipment, ZE3308SB uses a 3-way, 3-position solenoid valve with advance / hold / retract functionality.
If the shortlist includes ZE3304SB, focus on the configuration change: reservoir capacity is 1.8 gal on ZE3308SB versus 1.2 gal on ZE3304SB. The remaining shared family characteristics should not obscure that difference.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE33 |
| Valve Configuration | 3-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
