The Enerpac FA9TESTD corrects suitable linear or rotational flange misalignment before bolting. The tool is hydraulically actuated using the included hand pump.
Key specifications
- Maximum aligning force: 10.1 US tons
- Minimum bolt size: 1.40"
- Flange wall thickness range: 3.66"–9.00"
- Actuation: hydraulic

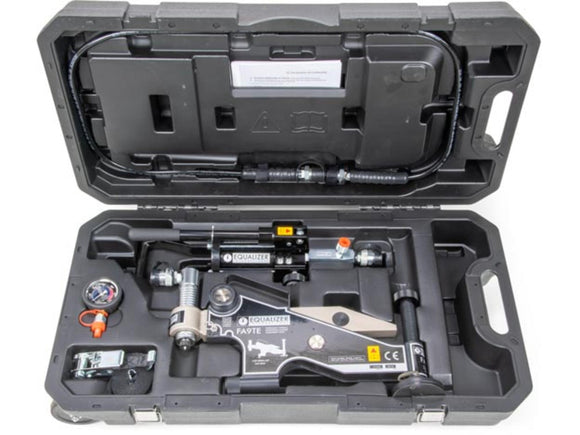

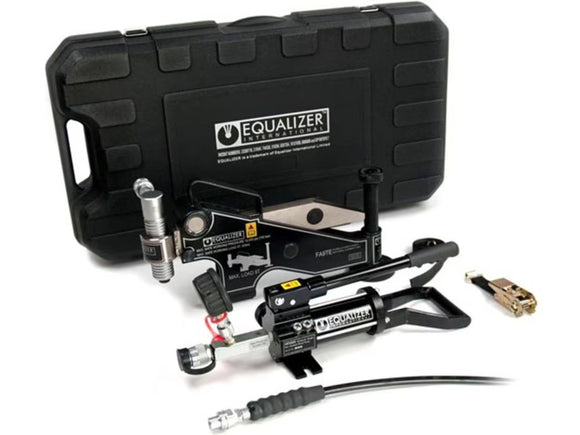

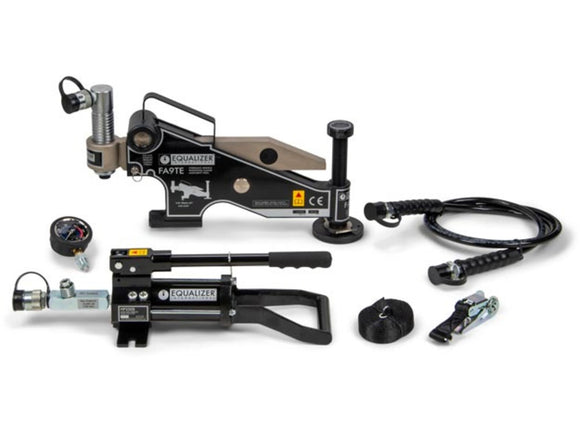

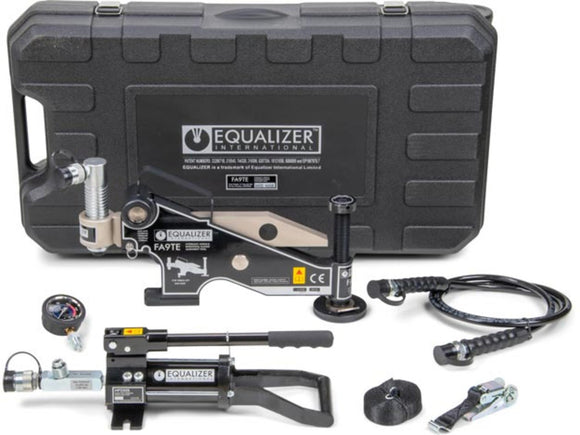

Included components

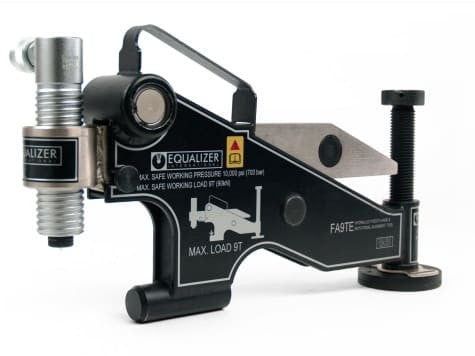

- 1 × FA9TE hydraulic flange alignment tool
- 1 × HP350S 10,000 psi hydraulic hand pump with gauge
- 1 × 2.0-m, 10,000 psi hydraulic hose
- 1 × ratchet and strap

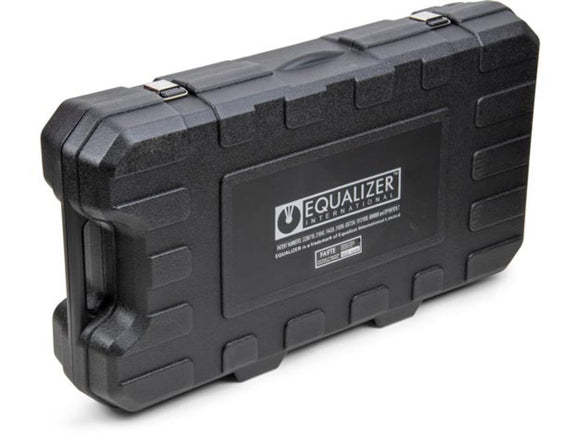

- 1 × carry case
Before ordering
Confirm flange geometry, bolt-hole access, wall thickness and misalignment. Use the supplied securing strap and follow the tool load and positioning limits.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Flange Alignment Tool |
|---|---|
| Load Capacity | 9 Ton |
| Maximum Operating Pressure | 10,000 psi |
| Bolt Hole Diameter Min | 1.4 in |
| Case Dimensions | 36.2 x 20.5 x 8.3 in |
| Maximum Reaction Force | 10.1 ton |
| Minimum Bolt Size | 1.4 in |
| Reaction Force 2 Max | 10.1 ton |
| Weight | 32 lb |
