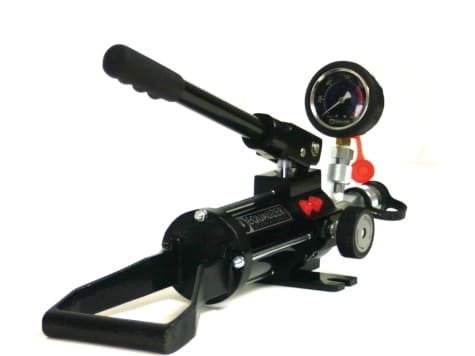

HP1000SMIN Enerpac HP Series Sealed Hydraulic Hand Pump, Single Port, 10,000 psi, 67.7 in³, Two-Speed

HP1000SMIN Enerpac HP Series Sealed Hand Pump is the largest single-port configuration in the HP range, providing 67.7 in³ of usable oil for single-acting hydraulic equipment. It is intended for applications where one hydraulic circuit needs more fluid volume than the HP350S or HP550S can provide.

Maximum HP-Series Capacity with One Outlet

The defining feature of the HP family is its sealed reservoir. Enerpac designed these pumps to operate at all angles while resisting accidental oil spillage and air contamination, a useful characteristic for field maintenance, flange work and other jobs where the pump cannot always sit perfectly level.

Two-speed operation supplies higher flow at low pressure and then transitions to the controlled high-pressure stage up to 10,000 psi. A gauge is included so system pressure can be monitored at the pump.

HP1000SMIN is the right comparison point when oil capacity is more important than multiple outlets. For simultaneous connection of two single-acting circuits, HP1000DMIN uses the same reservoir size with twin ports.
