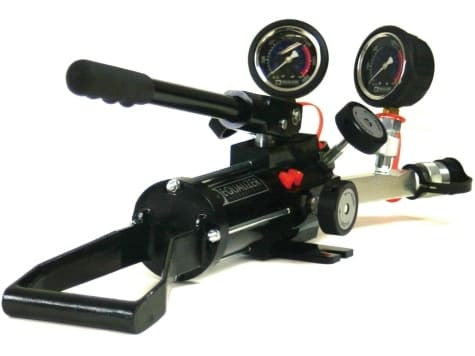

HP550DMIN Enerpac HP Series Sealed Hand Pump is the mid-capacity twin-port model in the HP range. Its two outlets allow a single operator to pressurize two single-acting hydraulic circuits from one pump, while the sealed reservoir lets the unit work at different orientations without relying on a conventional vented tank.
Twin-Port Flexibility with a Mid-Size Reservoir
The 35.4 in³ usable oil capacity sits between the compact HP350D and larger HP1000D. That makes HP550DMIN useful when the application needs two pressure outlets but does not justify the added size of the 67.7 in³ model.
Enerpac regulates HP Series output to 10,000 psi and uses a two-speed mechanism to reduce handle effort and cycle time. The sealed reservoir is designed to resist spills and air contamination when the pump is carried, tilted or operated away from a level bench.
A gauge is supplied with the pump kit. If only one hydraulic outlet is required, the HP550SMIN offers the same reservoir class in a lighter single-port layout.
Specifications
| Pump Series | HP Series |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 35.4 in³ |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | Yes |
