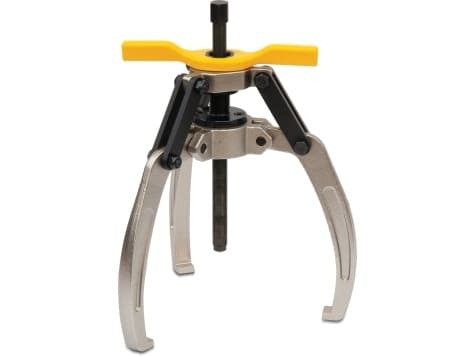

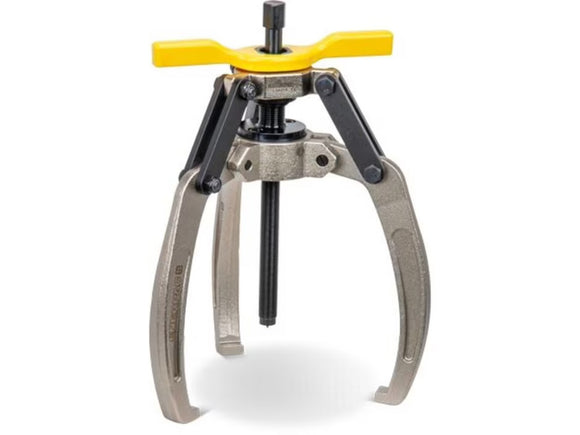

The Enerpac LGM318 is a three-jaw mechanical Lock-Grip puller for removing suitably accessible shaft-mounted parts. Its locking grip helps keep the jaws engaged during a correctly configured pull.
Key specifications
- Puller capacity: 18 tons
- Operation: mechanical
- Jaws: 3
- Maximum reach: 8.46"
- Spread range: 4.33"–15.35"
- Maximum spindle torque: 245 ft-lb

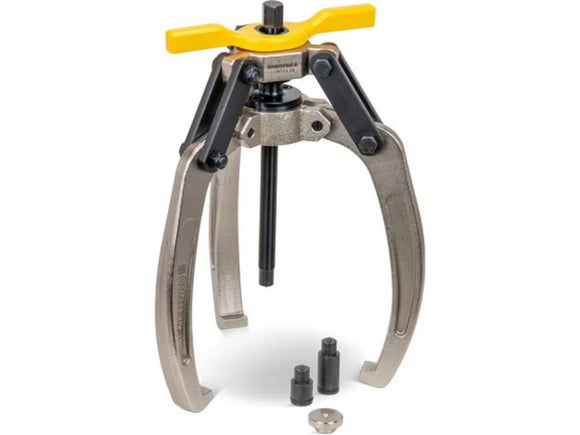

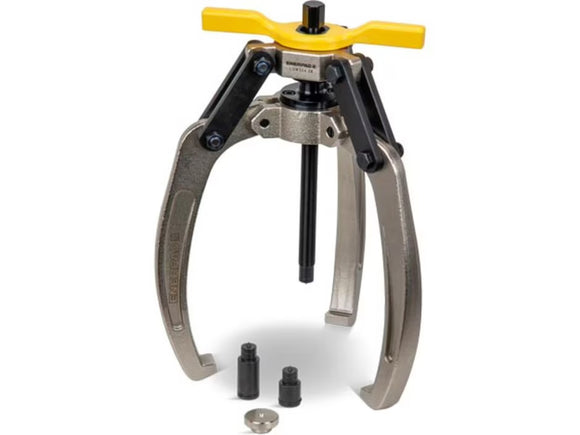

Included components
- Mechanical Lock-Grip puller
- Point protector
Before ordering
Check the part diameter, pulling reach and available jaw engagement. Use the included point protector when the shaft end has no drilled center hole. Do not exceed the puller or spindle torque rating.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Lock-Grip Puller Mechanical |
|---|---|
| Puller Type | Mechanical 3 Jaw Puller |
| Load Capacity | 18 Ton |
| Maximum Reach | 8.46 in |
| Maximum Spread | 15.35 in |
| Minimum Spread | 4.33 in |
| Maximum Torque (ft-lb) | 245 |
| Power Source | Mechanical |
| Dimension B Maximum | 15.35 in |
| Dimension B Minimum | 4.33 in |
| Number of Jaws | 3 |
| Weight | 21.56 lb |
