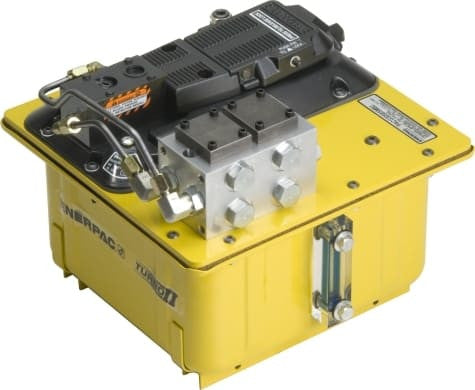

PACG50S8SMB2 Enerpac Turbo II Air Hydraulic Pump is the 5000 Series version of the two-station D03 manifold package. It uses the large 462 in³ reservoir to supply two valve positions from one air-hydraulic source.
Two-Station Manifold With 5,000 psi Rated-Pressure Flow
This model is a good fit when a fixture needs two D03-controlled hydraulic functions and the system benefits from the 5000 Series' stronger top-end flow profile. Unused capacity and extra manifold stations are avoided compared with a four-station setup.
Enerpac lists 20 in³/min at 5,000 psi. PACG30S8SMB2 is the higher-flow 3000 Series counterpart, while PACG50S8SMB4 doubles the available D03 valve stations from two to four.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Two D03 Valve Manifold |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
