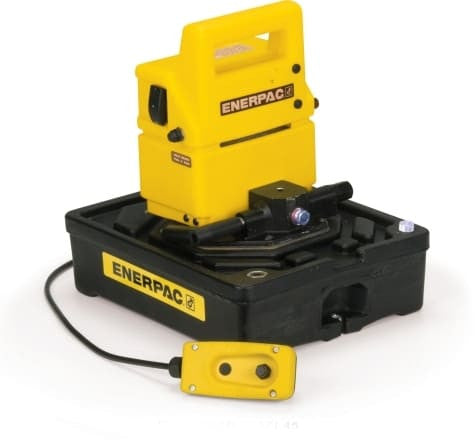

PUJ1201B is an Enerpac Economy Electric Hydraulic Pump configured around single-acting advance / retract operation. The valve behavior is intentionally simple: advance the single-acting tool, then release pressure for return. Applications that need a hydraulic hold step should use a hold-capable configuration instead.
Enerpac positions the PU economy pump family for small to medium cylinders and hydraulic tools, with a compact package intended for easy transport. Pendant control lets the operator command the pump without standing at the valve body. For single-acting equipment, PUJ1201B uses a 3-way, 2-position manual valve with advance / retract functionality.
Valve, Reservoir and Power Fit for PUJ1201B
A practical comparison is PUJ1200B. Between the two, reservoir capacity is 1.0 gal on PUJ1201B versus 0.5 gal on PUJ1200B. That gives the buyer a concrete reason to choose one model over the other.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | PUJ Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Valve Configuration | 3-way, 2-position manual valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
