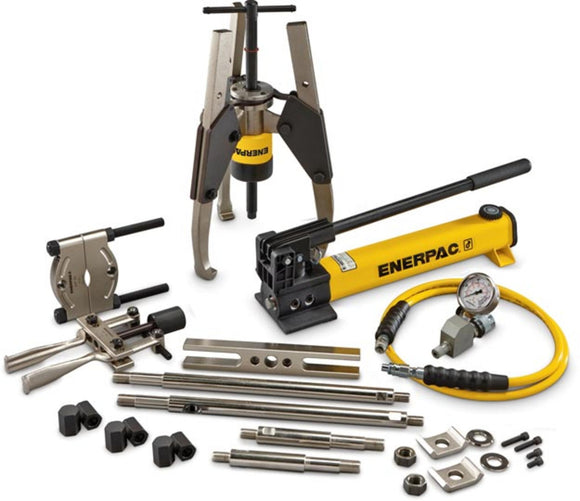

The Enerpac MPS24H combines a hydraulic Sync-Grip puller with hand-operated hydraulic power. Its additional attachments support cross-bearing and internal bearing race removal configurations.
Key specifications
- Puller capacity class: 24 tons
- Maximum reach with standard jaws: 12.60"
- Maximum spread with standard jaws: 18.90"
- Cylinder stroke: 2.0"
- Pump power: hand operated
- Maximum operating pressure for grip pulling: 10,000 psi
Included components
- SGH24 Sync-Grip hydraulic puller with cylinder
- Hydraulic hand pump
- HC7206C hydraulic hose
- GA45GC gauge and adapter assembly
- Cross-bearing pulling attachments
- BHP280 internal bearing race puller
- BHP282 bearing separator attachment
Before ordering
Match pulling force, reach, spread and secure jaw engagement to the application. Optional extended jaws are sold separately. Use the limits for each attachment configuration; cross-bearing pulling is limited to 5,000 psi.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Sync Grip Master Puller Set |
|---|---|
| Load Capacity | 24 Ton |
| Stroke | 2 in |
| Maximum Reach | 12.6 in |
| Maximum Spread | 18.9 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hand Pump |
| Jaw Height | 0.61 in |
| Jaw Hole Spacing | 4.53 in |
| Jaw Thickness | 1.22 in |
| Jaw Width | 0.69 in |
| Optional Long Jaw Maximum Reach | 17.13 in |
| Optional Long Jaw Maximum Spread | 21.26 in |
| Weight | 108 lb |
