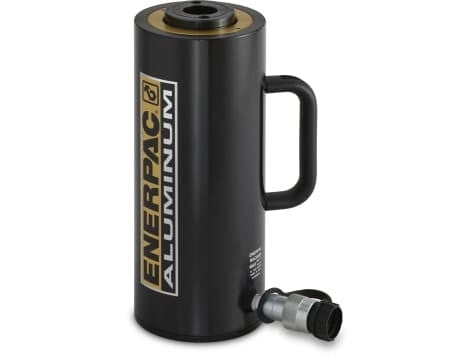

RACH-202 Cylinder, Aluminum, 20 Ton, 2", Hollow
Model : RACH202 Series : RACH Product Lines : Industrial Tools Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards
RACH Series Hollow Aluminum Cylinders Cut Sheet
Model : RACH202 Series : RACH Product Lines : Industrial Tools Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards
Specifications
| Load Capacity | 25.4 Ton |
|---|---|
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Hollow |
| Cylinder Stroke | 1.97 in |
