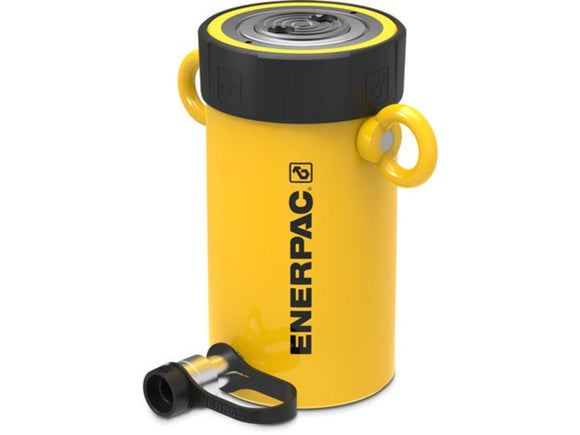

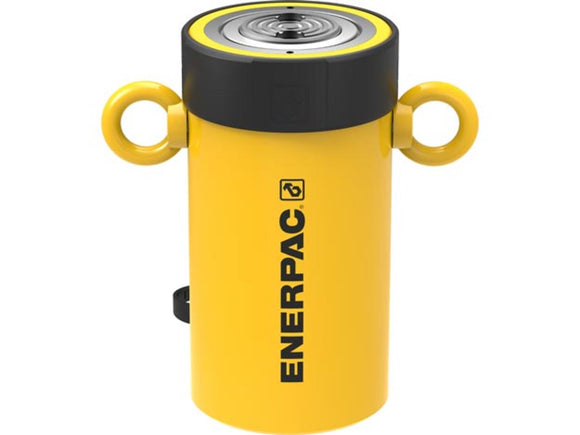

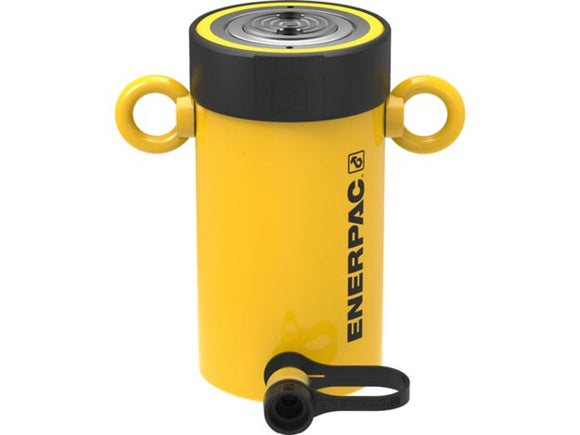

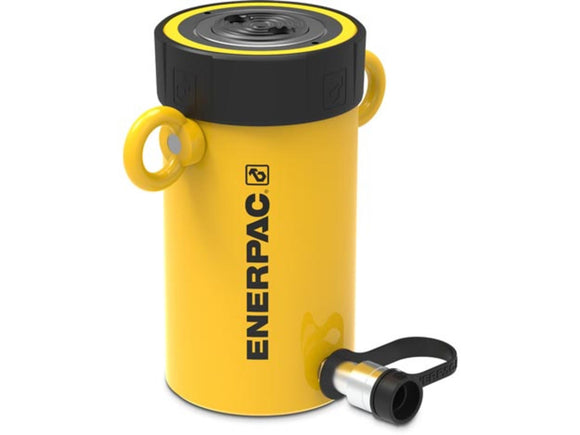

The Enerpac RC756 is a 75-ton-class RC-Series hydraulic cylinder with a 6.13" stroke. Hydraulic pressure extends the solid plunger, and the internal spring returns it when pressure is released.
Key specifications
- Capacity class: 75 tons
- Maximum cylinder force: 79.5 US tons at rated pressure
- Stroke: 6.13"
- Collapsed height: 11.25"
- Oil capacity: 97.49 in³
- Action: single-acting
- Return: spring
- Plunger: solid
- Maximum operating pressure: 10,000 psi (700 bar)
Included components
- RC756 hydraulic cylinder
- CR400 high-flow female coupler
Before ordering
Match required load, travel and available clearance, and size the pump reservoir for the cylinder and hose oil volume. Choose compatible hoses and controlled load support for the complete application. Pump and hose are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RC |
| Cylinder Type | General Purpose Hydraulic Cylinders |
| Load Capacity | 79.5 Ton |
| Cylinder Stroke | 6.13 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
