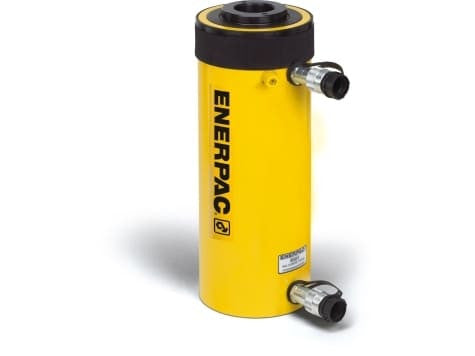

The Enerpac RRH307 is a double-acting hollow plunger hydraulic cylinder intended for push/pull, tensioning and testing applications that need both a hollow plunger and hydraulic control in both directions. This model is specified with a rated capacity of 30 tons and a stroke of 7.00 in.
Key specifications
- Capacity: 30 tons
- Stroke: 7.00 in.
- Series: RRH
Product features
- Baked enamel finish for increased corrosion resistance Collar threads enable easy fixturing.
- Double-acting operation for fast retraction Nickel-plated, floating center tube increases product life Hollow plunger allows for both pull and push forces.
- CR-400 couplers and dust caps included on all models.
- Plunger wiper reduces contamination, extending cylinder life.
Selection considerations
Select by force, travel and through-hole requirement, and confirm the pump, valve, hoses and couplers support double-acting operation.
Specifications
| Load Capacity | 36 Ton |
|---|---|
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Steel |
| Plunger Type | Hollow |
| Cylinder Stroke | 7.00 in |
