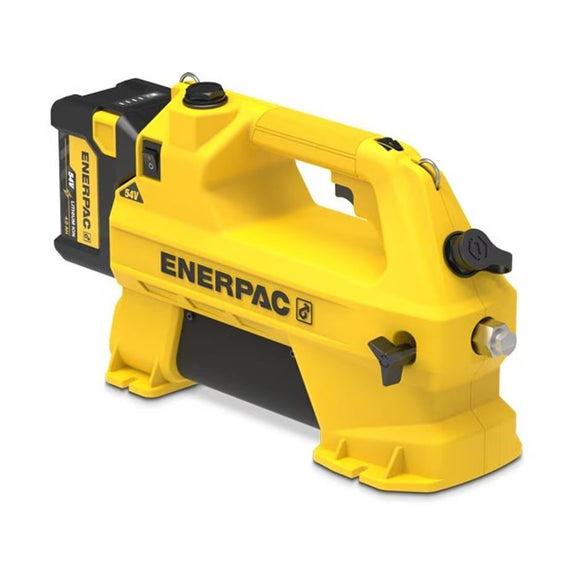

The Enerpac SC1201MB is a compact cordless pump kit for compatible single-acting cylinders and hydraulic tools. Thumbwheel speed adjustment supports controlled advance, while the manual release valve controls retraction.
Key specifications
- Usable oil capacity: 1.0 L
- Maximum hydraulic pressure: 10,000 psi
- Valve: 3-way, 2-position manual
- Battery system: 54V, 4 Ah
- Included charger supply: 115V, North American plug
- Oil flow at rated pressure: 0.20 L/min
Included components
- 1 × SC1201M cordless pump
- 2 × 54V, 4 Ah lithium-ion batteries
- 1 × 115V North American battery charger
- 1 × shoulder strap
Before ordering
Confirm cylinder oil volume, pressure, return action and hydraulic connections. Select compatible hoses separately and check the charger supply.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | SC Series |
|---|---|
| Power Source | Battery |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 1.2 L |
| Usable Oil Capacity | 61 in³ (1.0 L) |
| Valve Configuration | 3-way, 2-position manual valve |
| Cylinder Compatibility | Single-Acting |
| Control Type | Manual |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Battery Included | true |
| Number of Batteries | 2 |
| Charger Included | true |
| Charger Voltage | 115V |
