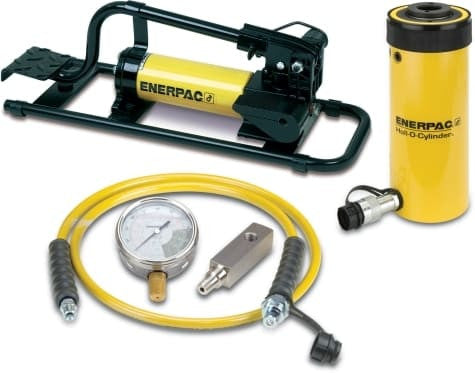

SCH302FP Enerpac Hollow-Plunger Hydraulic Cylinder & Foot Pump Set combines RCH push/pull cylinder geometry with foot-operated hydraulic power. The cylinder is rated at 30 Ton and provides 2.5 in of stroke.
What Drives the Selection
The foot-pump arrangement is a practical middle ground for users who want a manually powered system but do not want to operate a conventional hand pump during each cycle.
At 30 tons and 2.5 inches of stroke, RCH-302 sits in the middle of the hollow-plunger set range and balances force with moderate travel.
Choose SCH302FP because the job needs an RCH hollow cylinder first; capacity, stroke and pump style come after that. This avoids paying for specialized cylinder geometry when a conventional push-only cylinder would do.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Foot Pump |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 30 Ton |
| Cylinder Type | Hollow Plunger |
| Cylinder Stroke | 2.5 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
