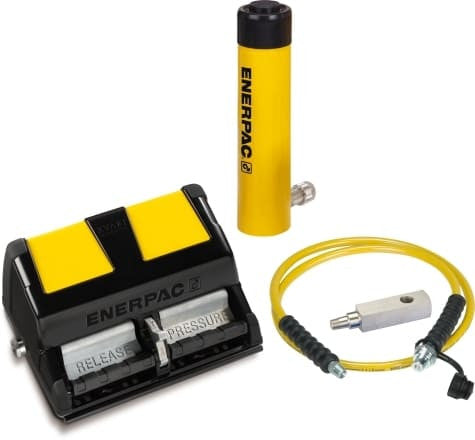

SCL201XA Enerpac Low-Height Hydraulic Cylinder & Air Pump Set combines the 20-ton RCS-201 cylinder with powered hydraulic operation from compressed air. The 1.75-inch stroke keeps it suited to low-clearance work, while the air pump is aimed at users who want to avoid repetitive manual pumping.
The Powered Choice in the 20-Ton RCS Set Group
This configuration is particularly relevant in maintenance shops and industrial areas where compressed air is already part of the work environment. It lets the operator retain the compact RCS cylinder geometry while changing the energy source from hand or foot power to air.
The 20-ton capacity positions RCS-201 between the smaller 10-ton low-height set and the 30-ton RCS-302. Its 1.75-inch stroke is intentionally limited because the cylinder is designed to fit where vertical space is at a premium.
Compared with SCL201H and SCL201FP, the deciding factor is not cylinder performance but cycle method: choose SCL201XA when powered air operation is worth the connection to a compressed-air supply.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 20 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 1.75 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
