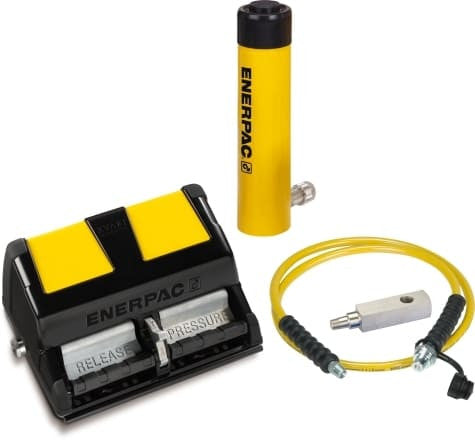

For jobs with compressed air available, SCR2514XA packages Enerpac’s versatile RC cylinder with powered hydraulic operation. This model uses the 25 Ton, 14.25 in-stroke cylinder configuration.
A Closer Look at the Configuration
The RC-2514 is the travel specialist in Enerpac’s 25-ton set lineup. Its 14.25-inch stroke is far longer than the other 25-ton choices and is the defining reason to select this configuration.
The air pump is most useful when cycle frequency or cylinder oil demand makes hand pumping less attractive. It keeps the hydraulic system portable while using compressed air as the energy source.
For comparison within the SCR family, start with required capacity and stroke, then choose the pump style. That prevents selecting a powered or manual version before confirming that the cylinder itself fits the application.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 25 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 14.25 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
