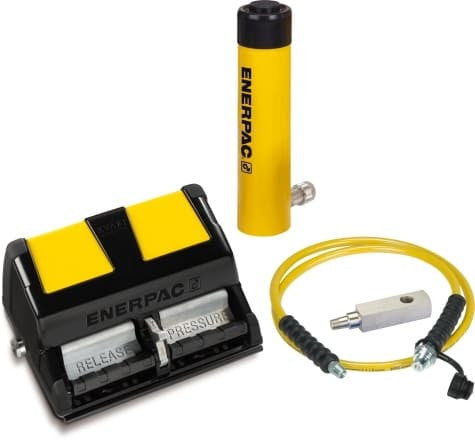

Enerpac configures SCR506XA Hydraulic Cylinder & Air Pump Set around an RC single-acting cylinder and compressed-air hydraulic power. The selected cylinder delivers 50 Ton nominal capacity with 6.25 in of stroke.
An air-powered pump is the operational advantage of this version. Where compressed air is already available, it removes repetitive manual pumping and is well suited to jobs involving repeated cylinder cycles.
Why This Configuration Stands Out
The RC-506 raises the general-purpose set to 50-ton capacity while retaining 6.25 inches of stroke. It serves heavier lifting and positioning work without moving to a specialized low-height or hollow-plunger cylinder.
Choose SCR506XA when an RC general-purpose cylinder is the right geometry and this specific combination of force, travel and pump style matches the work. A low-height RCS or hollow-plunger RCH set serves a different mechanical need.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 50 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 6.25 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
