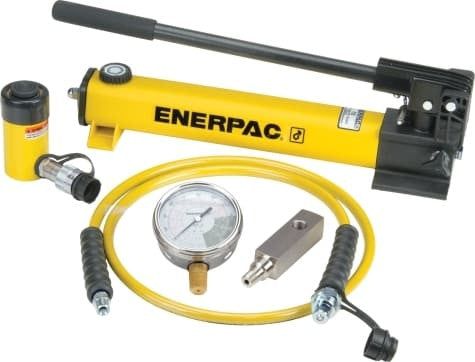

Built around an RC-Series single-acting cylinder, SCR102H Enerpac Hydraulic Cylinder & Hand Pump Set gives the operator 10 Ton capacity and 2.13 in of cylinder movement in a portable manual package.
Cylinder Travel and Pump Choice
Among the 10-ton RC choices, the 2.13-inch stroke is the compact-travel option. It suits jobs where the force requirement is clear but only a short lift, push or positioning movement is needed.
Manual hand pumping keeps the hydraulic set independent of compressed air and electrical service, which is useful for intermittent maintenance, field repairs and locations where external power is inconvenient.
The RC cylinder makes this a versatile solid-plunger set rather than a specialized low-height or hollow-cylinder package. Final selection should be based on required load, usable stroke and the preferred power source.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 2.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
