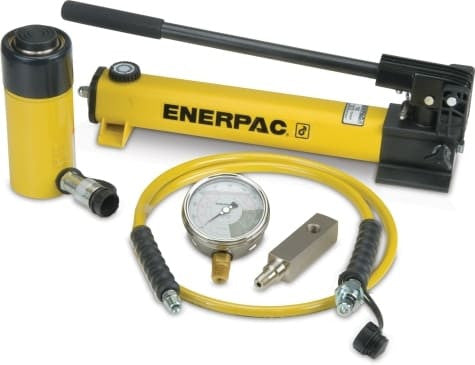

The Enerpac SCR256H pairs a 25-ton-class RC256 general-purpose cylinder with a P392 hand pump and the hose, gauge and adapter listed below. The cylinder has a 6.25" stroke and spring return.
Key specifications
- Cylinder capacity class: 25 tons
- Cylinder stroke: 6.25"
- Cylinder action: single-acting
- Cylinder return: spring
- Maximum operating pressure: 10,000 psi (700 bar)
Included components
- RC256 general-purpose hydraulic cylinder
- P392 hydraulic hand pump
- HC7206 hydraulic hose
- GF20P pressure and force gauge
- GA2 gauge adapter
Before ordering
Confirm the cylinder load, travel and starting clearance for the application. Follow manufacturer setup and operating requirements. Use force-gauge scales only for their specified cylinder models.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 25 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 6.25 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
