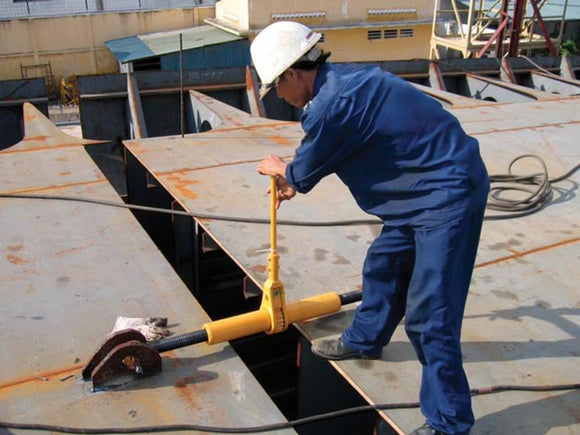

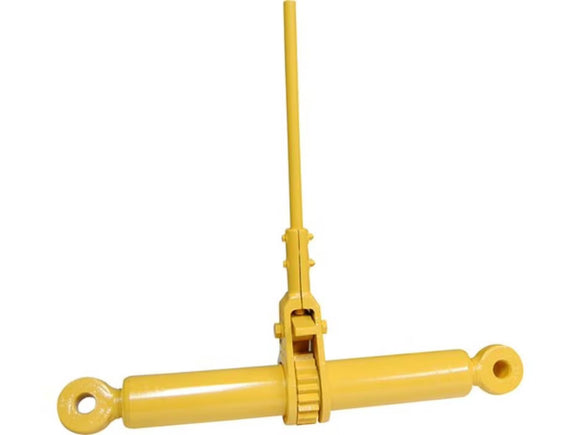

The Simplex SER10 is a mechanical loadbinder jack for suitable push or pull applications, including positioning connected structural members.
Key specifications
- Capacity: 20 tons
- Travel: 14"
- Eye-to-eye length: 23"–37"
- Barrel length: 18"
- Handle: integrated 26" operating handle
Before ordering
Confirm both attachment points, alignment, required force and available travel. Use the loadbinder only within the manufacturer application and operating limits.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 20 Ton |
|---|---|
| Stroke | 14 in |
| Power Source | Mechanical |
| Barrel Length | 18 in |
| Eye to Eye Maximum | 37 in |
| Eye to Eye Minimum | 23 in |
| Inner Diameter Left Right Screw Eye | 1.31 in |
| Left Right Screw Eye Thickness | 1.87 in |
| Left Right Screw Length | 11 in |
| Pipe Barrel Outside Diameter | 3.5 in |
| Radius | 1.75 in |
| Ratchet Socket Length | 0.75 in |
| Screw Diameter | 2 in |
| Travel Length | 14 in |
| Weight | 57 lb |
