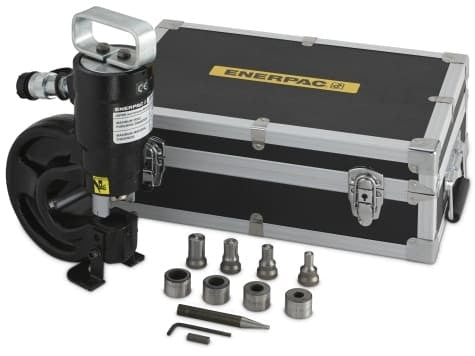

The Enerpac SP35S combines the SP35 hydraulic punch with four matched round punch and die sizes. Select a compatible hydraulic pump and hose separately.
Key specifications
- Punch capacity: 35 tons
- Maximum operating pressure: 10,000 psi
- Included hole sizes: 7/16", 9/16", 11/16" and 13/16"
Included components
- SP35 35-ton hydraulic punch
- SPD438 7/16" punch and die set
- SPD563 9/16" punch and die set
- SPD688 11/16" punch and die set
- SPD813 13/16" punch and die set
- SPK10 punch installation/removal tool kit
- CR400 female hydraulic coupler
- Storage case
Before ordering
Check material grade, thickness, hole diameter and throat clearance against the manufacturer limits. Material thickness must not exceed hole diameter. A pump and hose are required separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
