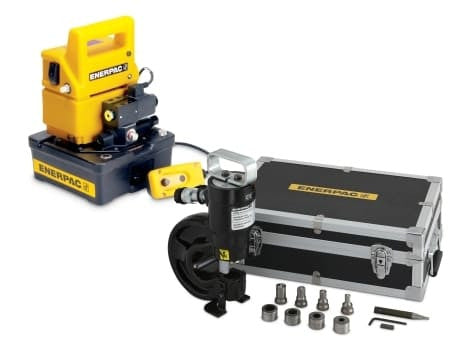

The Enerpac SP35SP combines the SP35 hydraulic punch with four matched round punch and die sizes. This set also includes a 115V electric pump and hydraulic hose.
Key specifications
- Punch capacity: 35 tons
- Maximum operating pressure: 10,000 psi
- Included hole sizes: 7/16", 9/16", 11/16" and 13/16"
- Pump power: 115 VAC
Included components
- SP35 35-ton hydraulic punch
- SPD438 7/16" punch and die set
- SPD563 9/16" punch and die set
- SPD688 11/16" punch and die set
- SPD813 13/16" punch and die set
- SPK10 punch installation/removal tool kit
- CR400 female hydraulic coupler
- Storage case
- PUD1100B 115V economy electric pump
- HC7206 hydraulic hose
Before ordering
Check material grade, thickness, hole diameter and throat clearance against the manufacturer limits. Material thickness must not exceed hole diameter. Confirm the 115V electrical supply.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
