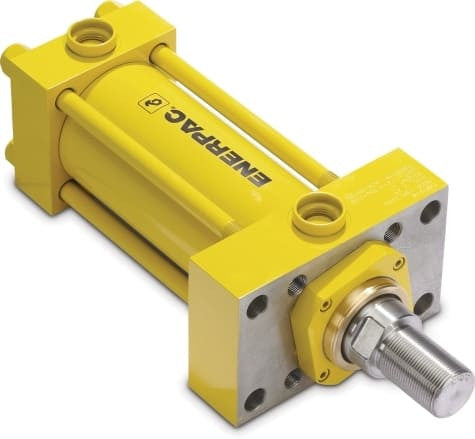

TRFL1504 (TRFL-1504) Enerpac Tie Rod Cylinder, 1.5" Bore, 4" Stroke, No Cush.
Model : TRFL1504 Series : TR Product Lines : Workholding Tools Flange mount is part of the cylinder end cap, providing maximum strength and rigidity Allows length of cylinder to be mounted inside the machine NFPA style ME5 Simple four bolt mounting pattern makes installation easy Mounting is best suited for tension applications Think Safety Manufacturer√¢ rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Model : TRFL1504 Series : TR Product Lines : Workholding Tools Flange mount is part of the cylinder end cap, providing maximum strength and rigidity Allows length of cylinder to be mounted inside the machine NFPA style ME5 Simple four bolt mounting pattern makes installation easy Mounting is best suited for tension applications Think Safety Manufacturer√¢ rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Specifications
| Push Force | 8,850 lb |
|---|---|
| Pull Force | 4,900 lb |
| Cylinder Type | Tie Rod Hydraulic Cylinders |
| Cylinder Stroke | 4.00 in |
